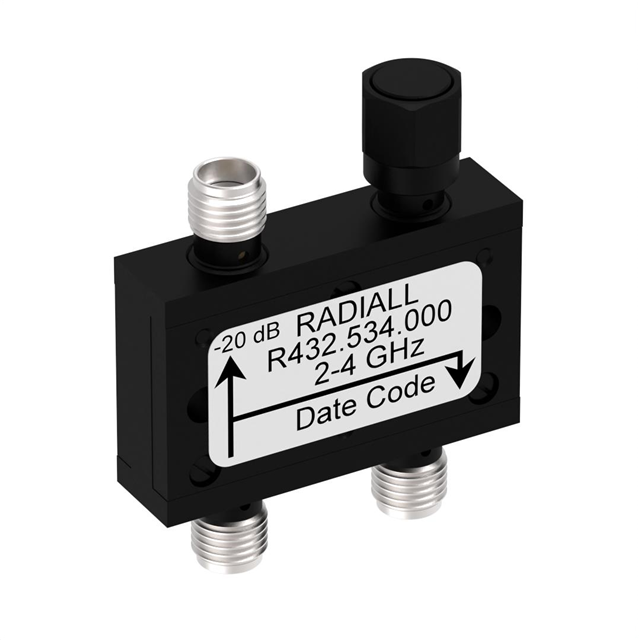

R432534000
ActiveRadiall USA, Inc.
COUPLER: SMA 2-4GHZ 20DB
R432534000
ActiveRadiall USA, Inc.
COUPLER: SMA 2-4GHZ 20DB
Description
General part information
R432534000
RF Directional Coupler General Purpose 2GHz ~ 4GHz 20 ± 0.3dB 80W Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | R432534000 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 20 dB |
| Coupling Factor Tolerance | 0.3 dB |
| Frequency (Max) | 4 GHz |
| Frequency (Min) | 2 GHz |
| Insertion Loss | 0.4 dB |
| Package / Case | Module, SMA Connectors |
| Power - Max | 80 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
