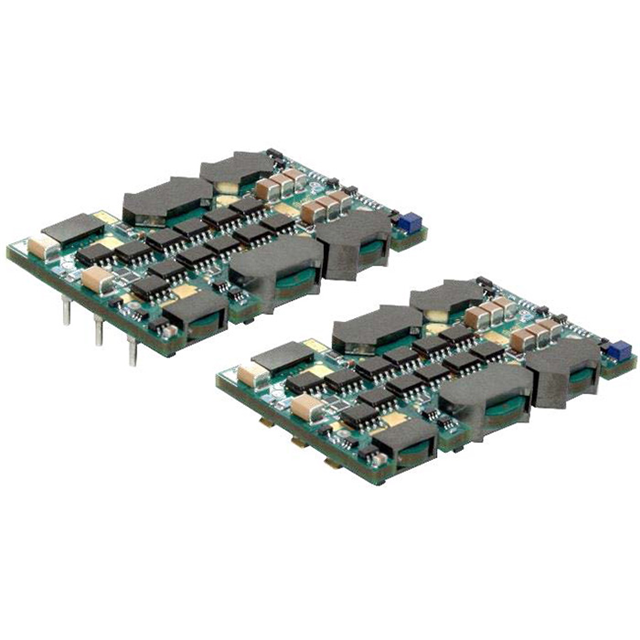

QM48T25050-NAC0G
ActiveBel Power Solutions
DC DC CONVERTER 5V 125W
Deep-Dive with AI
Search across all available documentation for this part.
QM48T25050-NAC0G
ActiveBel Power Solutions
DC DC CONVERTER 5V 125W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | QM48T25050-NAC0G | QM48T25050 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | - | Active Low, Enable, Active High |
| Current - Output (Max) [Max] | 25 A | 25 A |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP | OTP, Remote On/Off, OVP, UVLO, OCP, SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 1/4 Brick, 8-DIP Module | 1/4 Brick, 8-DIP Module |
| Power (Watts) | 125 W | 125 W |
| Size / Dimension [x] | 58.4 mm | 57.9 - 58.4 mm |
| Size / Dimension [x] | 2.3 in | 2.28 - 2.3 in |
| Size / Dimension [y] | 1.45 in | 1.45 in |
| Size / Dimension [y] | 36.8 mm | 36.8 mm |
| Size / Dimension [z] | 0.33 in | 0.33 - 0.42 in |
| Size / Dimension [z] | 8.4 mm | 8.3 - 10.7 mm |
| Supplier Device Package | Quarter Brick | Quarter Brick |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 2000 V | 2000 V |
| Voltage - Output 1 | 5 V | 5 V |
QM48T25050 Series
DC DC CONVERTER 5V 125W
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Type | Package / Case | Current - Output (Max) [Max] | Mounting Type | Number of Outputs | Voltage - Input (Min) [Min] | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Power (Watts) | Voltage - Output 1 | Features | Applications | Control Features | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bel Power Solutions QM48T25050-NBB0G | 36.8 mm | 1.45 in | 2.3 in | 0.36 in | 9.1 mm | 58.4 mm | Isolated Module | 1/4 Brick, 8-DIP Module | 25 A | Through Hole | 1 | 36 V | 2000 V | 85 °C | -40 °C | 75 V | 125 W | 5 V | OCP, OTP, OVP, Remote On/Off, UVLO | ITE (Commercial) | Active Low, Enable | |
Bel Power Solutions QM48T25050-NDB0 | 36.8 mm | 1.45 in | 2.28 in | 0.42 in | 10.7 mm | 57.9 mm | Isolated Module | 1/4 Brick, 8-DIP Module | 25 A | Through Hole | 1 | 36 V | 2000 V | 85 °C | -40 °C | 75 V | 125 W | 5 V | OCP, OTP, OVP, Remote On/Off, UVLO | ITE (Commercial) | Active Low, Enable | |
Bel Power Solutions QM48T25050-NAC0G | 36.8 mm | 1.45 in | 2.3 in | 0.33 in | 8.4 mm | 58.4 mm | Isolated Module | 1/4 Brick, 8-DIP Module | 25 A | Through Hole | 1 | 36 V | 2000 V | 85 °C | -40 °C | 75 V | 125 W | 5 V | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | ITE (Commercial) | Quarter Brick | |
Bel Power Solutions QM48T25050-PAA0 | 36.8 mm | 1.45 in | 2.28 in | 0.33 in | 8.3 mm | 57.9 mm | Isolated Module | 1/4 Brick, 8-DIP Module | 25 A | Through Hole | 1 | 36 V | 2000 V | 85 °C | -40 °C | 75 V | 125 W | 5 V | OCP, OTP, OVP, Remote On/Off, UVLO | ITE (Commercial) | Active High, Enable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 360 | $ 127.61 | |
Description
General part information
QM48T25050 Series
Isolated Module DC DC Converter 1 Output 5V 25A 36V - 75V Input
