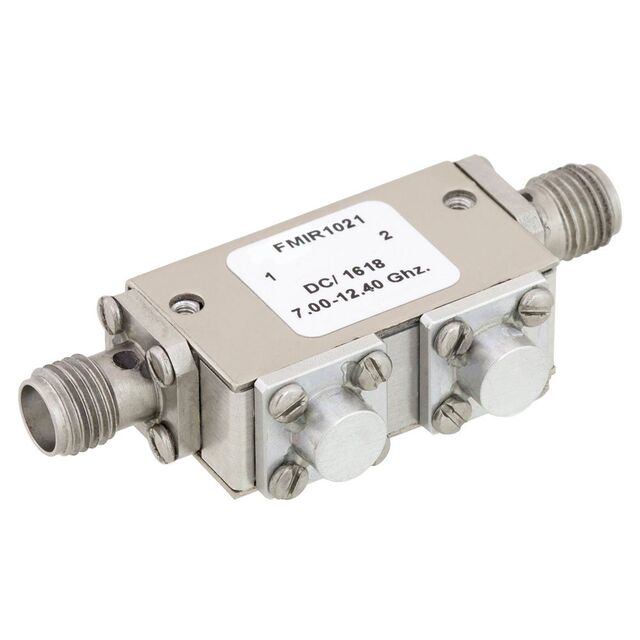

FMIR1021
ActiveFairview Microwave
ISOLATOR SMA JACK 7GHZ-12.4GHZ 5
FMIR1021
ActiveFairview Microwave
ISOLATOR SMA JACK 7GHZ-12.4GHZ 5
Description
General part information
FMIR1021
ISOLATOR SMA JACK 7GHZ-12.4GHZ 5
Technical Specifications
Parameters and characteristics for this part
| Specification | FMIR1021 |
|---|---|
| Connector Type | SMA-FEMALE |
| Frequency (Max) | 12.4 GHz |
| Frequency (Min) | 7 GHz |
| Insertion Loss (Max) | 1.2 dB |
| Isolation (Min) | 40 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| Power - Average Forward | 5 W |
| Type | Isolator |
| VSWR | 1.25 |
