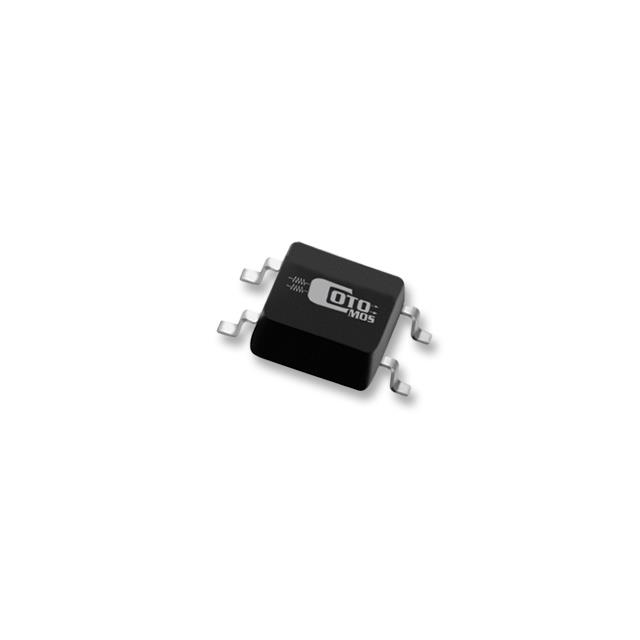

C230S

Obsolete

Coto Technology

SSR RELAY SPST-NO 100MA 0-400V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CotoMos Selector Chart

C230S

Obsolete

Coto Technology

SSR RELAY SPST-NO 100MA 0-400V

Deep-Dive with AI

DocumentsDatasheet CotoMos Selector Chart

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.52
		10	$ 2.20
		25	$ 2.09
		50	$ 2.00
		100	$ 1.92
		250	$ 1.82
		500	$ 1.75
		1000	$ 1.68

Description

General part information

- Series

Solid State SPST-NO (1 Form A) 4-SOP (0.173", 4.40mm)

Documents

Technical documentation and resources

Datasheet

CotoMos Selector Chart

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C230S	- Series

Approval Agency	-	CUL, UL
Circuit	-	SPST-NO (1 Form A) x 2, SPST-NO, SPST-NC, SPST-NC (1 Form B) x 2, DPST-NO/NC, SPST-NC (1 Form B), DPST-NO (2 Form A)
Load Current	100 mA	1 - 400 mA
Mounting Type	Surface Mount	Through Hole, Surface Mount
On-State Resistance (Max)	-	160 mOhms
On-State Resistance (Max) [Max]	24 Ohm	1.6 - 500 Ohm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	DC, AC	DC, AC
Package / Case	4-SOP	8-DIP, 8-SOP, 4-SOP, 6-SMD, 6-DIP, 8-SMD, 4-SMD, Gull Wing, 4-DIP
Package / Case	0.173 in	0.173 - 7.62 in
Package / Case	4.4 mm	4.4 - 7.62 mm
Package / Case	-	4.4 mm
Package / Case	-	0.173 in
Package / Case	-	0.3 in
Supplier Device Package	4-SOP	8-DIP, 8-SOP, 4-SOP, 6-SMD, 6-DIP, 8-SMD, 4-DIP
Termination Style	Gull Wing	PC Pin, Gull Wing
Voltage - Input	1.37 VDC	1.17 - 5 VDC
Voltage - Input	-	1.2 VDC
Voltage - Input	-	1.5 VDC
Voltage - Load	-	0 V
Voltage - Load	-	20 - 1500 V

- Series

SSR RELAY SPST-NO 100MA 0-400V

...

Part	Circuit	Termination Style	Supplier Device Package	Package / Case	Package / Case	Package / Case	Voltage - Input	Output Type	On-State Resistance (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Load Current	Mounting Type	Package / Case [custom]	Package / Case [x]	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	On-State Resistance (Max)
Coto Technology CT330	SPST-NO (1 Form A) x 2	PC Pin	8-DIP	0.3 in	8-DIP	7.62 mm	1.37 VDC	AC, DC	30 Ohm	85 °C	-40 °C	100 mA	Through Hole
Coto Technology C774S	SPST-NC, SPST-NO	Gull Wing	8-SOP		8-SOP		1.37 VDC	AC, DC	30 Ohm	85 °C	-40 °C	80 mA	Surface Mount	4.4 mm	0.173 in
Coto Technology C226S		Gull Wing	4-SOP	0.173 in	4-SOP	4.4 mm	1.37 VDC	AC, DC	85 mOhms	85 °C	-40 °C	2 A	Surface Mount
Coto Technology CT674	SPST-NC (1 Form B) x 2	PC Pin	8-DIP	0.3 in	8-DIP	7.62 mm	1.37 VDC	AC, DC	50 Ohm	85 °C	-40 °C	80 mA	Through Hole
Coto Technology C234S		Gull Wing	4-SOP	0.173 in	4-SOP	4.4 mm	1.37 VDC	AC, DC		85 °C	-40 °C	180 mA	Surface Mount			0 V	200 V
Coto Technology CS139		Gull Wing	6-SMD	0.3 in	6-SMD	7.62 mm	1.17 VDC	AC, DC	150 Ohm	85 °C	-40 °C	50 mA	Surface Mount			0 V	1000 V
Coto Technology CT138		PC Pin	6-DIP	7.62 mm	6-DIP		1.37 VDC	AC, DC	60 Ohm	85 °C	-40 °C	80 mA	Through Hole			0 V	600 V	0.3 in
Coto Technology CT331	SPST-NO (1 Form A) x 2	PC Pin	8-DIP	0.3 in	8-DIP	7.62 mm	1.37 VDC	AC, DC	24 Ohm	85 °C	-40 °C	110 mA	Through Hole			0 V	350 V
Coto Technology CT147		PC Pin	6-DIP	7.62 mm	6-DIP		1.37 VDC	AC, DC		85 °C	-40 °C	2 A	Through Hole			0 V	80 V	0.3 in	160 mOhms
Coto Technology CT139		PC Pin	6-DIP	7.62 mm	6-DIP		1.17 VDC	AC, DC	150 Ohm	85 °C	-40 °C	50 mA	Through Hole			0 V	1000 V	0.3 in
