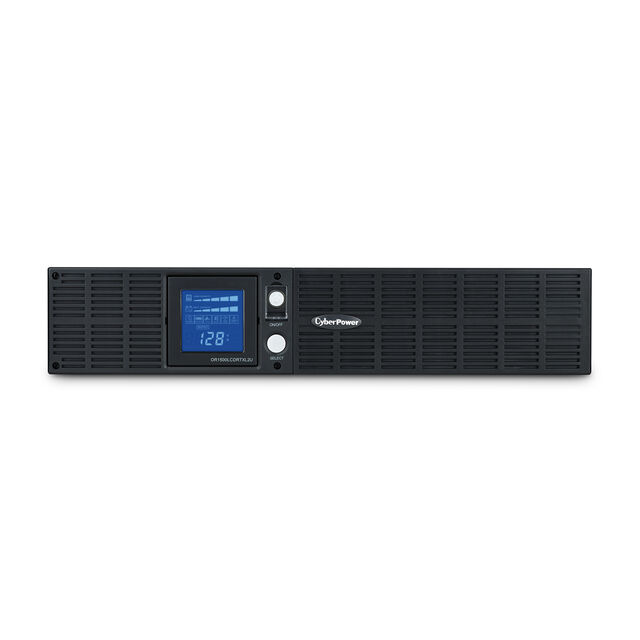

Specification	OR1500LCDRTXL2U

AC Outlets (Count)	8 count
Applications	General Purpose, Industrial Control
Backup Time - Max Load	7 minutes
Cord Length	10 ft
Form	Rackmount, Tower
Height	3.5 in
Input Connector	NEMA 5-15P
Media Lines Protected	RJ11
Output Connector	NEMA 5-15R
Output Connector Quantity (NEMA 5-15R)	8
Power - Rated (VA)	1.5 kVA
Power - Rated (W)	1125 W
Size / Dimension Length	18.8 in
Size / Dimension Width	17 in
Type	Line Interactive (Input Regulation)
Voltage - Input (Maximum)	140 VAC
Voltage - Input (Minimum)	90 V
Voltage - Output	120 V
