Description
General part information

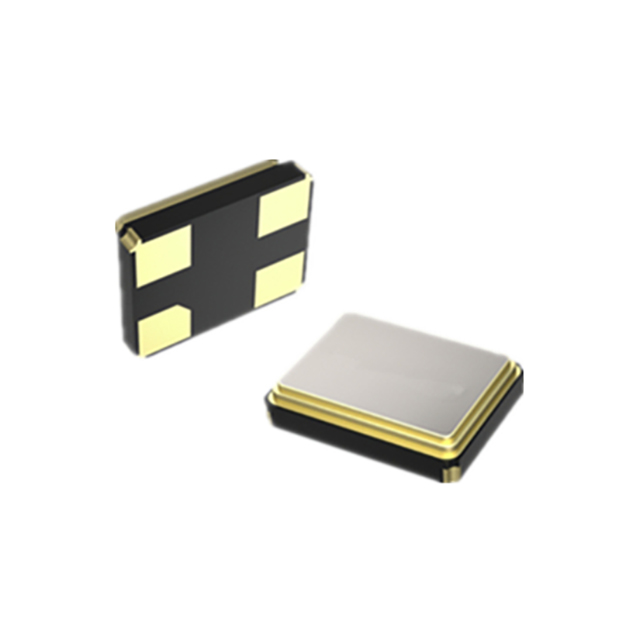

XF12M28800S412
12.288 MHz ±10ppm Crystal 12pF 100 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | XF12M28800S412 |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohm |
| Frequency | 12.288 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.031 in |
| Load Capacitance | 12 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 3.2 mm |
| Package Name | 4-SMD |
| Package Width | 2.5 mm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | MHz Crystal |
