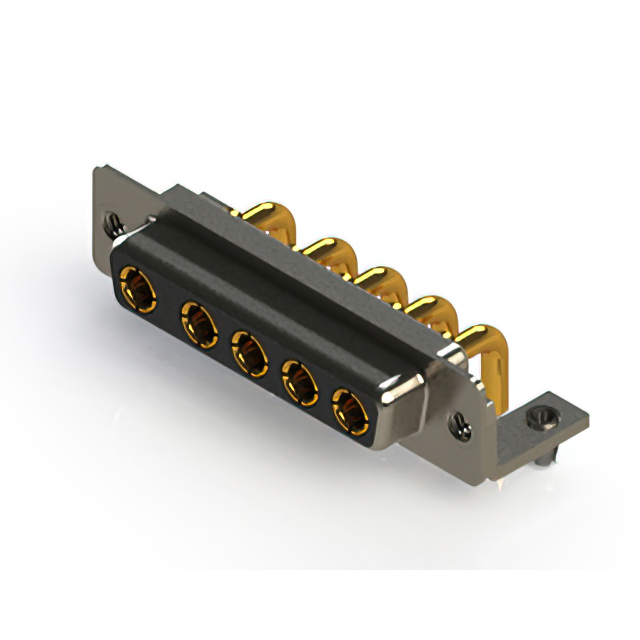

630-5W5-640-2NB

Active

EDAC Inc.

CONN D-SUB RCPT 5POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-5W5-640-2NB

Active

EDAC Inc.

CONN D-SUB RCPT 5POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-5W5-640-2NB

Backset Spacing	13.2 mm
Backset Spacing	0.52 "
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	20 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	5
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	125 VDC

630-5W5 Series

...

Part	Contact Material	Mounting Type	Number of Rows	Shell Material, Finish	Dielectric Material	Termination	Material Flammability Rating	Contact Finish	Current Rating (Amps)	Voltage Rating	Connector Style	Flange Feature	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Backset Spacing	Backset Spacing	Number of Positions [custom]	Contact Type	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish Thickness	Number of Positions
EDAC Inc. 630-5W5-640-3N1	Copper Alloy	Through Hole Right Angle	1	Nickel Plated Steel	Polyester Thermoplastic	Solder	UL94 V-0	Gold	30 A	125 VDC	Combo D-Sub	Housing/Shell (Unthreaded)	5W5	3	0.76 Ám	30 Áin	13.2 mm	0.52 "	5	Power	Receptacle Female Sockets	Shielded	-55 °C	125 °C	Black
EDAC Inc. 630-5W5-240-7TB	Copper Alloy	Through Hole Right Angle	1		Polyester Thermoplastic	Solder	UL94 V-0	Gold		125 VDC	Combo D-Sub	Housing/Shell (M3)	5W5	3			9.4 mm	0.37 in		Coax	Receptacle Female Sockets	Board Lock Mounting Brackets	-55 °C	125 °C	Black	Flash	5
EDAC Inc. 630-5W5-640-1TC	Copper Alloy	Through Hole Right Angle	1		Polyester Thermoplastic	Solder	UL94 V-0	Gold	10 A	125 VDC	Combo D-Sub	Housing/Shell (M3)	5W5	3	0.76 Ám	30 Áin	13.2 mm	0.52 "	5	Power	Receptacle Female Sockets	Mounting Brackets	-55 °C	125 °C	Black
EDAC Inc. 630-5W5-640-2NB	Copper Alloy	Through Hole Right Angle	1	Nickel Plated Steel	Polyester Thermoplastic	Solder	UL94 V-0	Gold	20 A	125 VDC	Combo D-Sub	Housing/Shell (M3)	5W5	3	0.76 Ám	30 Áin	13.2 mm	0.52 "	5	Power	Receptacle Female Sockets	Board Lock Mounting Brackets	-55 °C	125 °C	Black
EDAC Inc. 630-5W5-240-7N4	Copper Alloy	Through Hole Right Angle	1	Nickel Plated Steel	Polyester Thermoplastic	Solder	UL94 V-0	Gold		125 VDC	Combo D-Sub	Housing/Shell (4-40)	5W5	3			9.4 mm	0.37 in		Coax	Receptacle Female Sockets	Mounting Brackets	-55 °C	125 °C	Black	Flash	5
EDAC Inc. 630-5W5-240-1NE	Copper Alloy	Through Hole Right Angle	1	Nickel Plated Steel	Polyester Thermoplastic	Solder	UL94 V-0	Gold	10 A	125 VDC	Combo D-Sub	M3	5W5	3			13.2 mm	0.52 "	5	Power	Receptacle Female Sockets	Mounting Brackets	-55 °C	125 °C	Black	Flash
EDAC Inc. 630-5W5-240-4T5	Copper Alloy	Through Hole Right Angle	1		Polyester Thermoplastic	Solder	UL94 V-0	Gold	40 A	125 VDC	Combo D-Sub	4-40	5W5	3			13.2 mm	0.52 "	5	Power	Receptacle Female Sockets	Board Lock Mounting Brackets	-55 °C	125 °C	Black	Flash
EDAC Inc. 630-5W5-240-4T1	Copper Alloy	Through Hole Right Angle	1		Polyester Thermoplastic	Solder	UL94 V-0	Gold	40 A	125 VDC	Combo D-Sub	Housing/Shell (Unthreaded)	5W5	3			13.2 mm	0.52 "	5	Power	Receptacle Female Sockets	Shielded	-55 °C	125 °C	Black	Flash
EDAC Inc. 630-5W5-240-5NA	Copper Alloy	Through Hole Right Angle	1	Nickel Plated Steel	Polyester Thermoplastic	Solder	UL94 V-0	Gold		125 VDC	Combo D-Sub	Board Side (M3)	5W5	3			9.4 mm	0.37 in		Coax	Receptacle Female Sockets		-55 °C	125 °C	Black	Flash	5
EDAC Inc. 630-5W5-640-3T2	Copper Alloy	Through Hole Right Angle	1		Polyester Thermoplastic	Solder	UL94 V-0	Gold	30 A	125 VDC	Combo D-Sub	Housing/Shell (4-40)	5W5	3	0.76 Ám	30 Áin	13.2 mm	0.52 "	5	Power	Receptacle Female Sockets		-55 °C	125 °C	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 21.09

Description

General part information

630-5W5 Series

5 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
