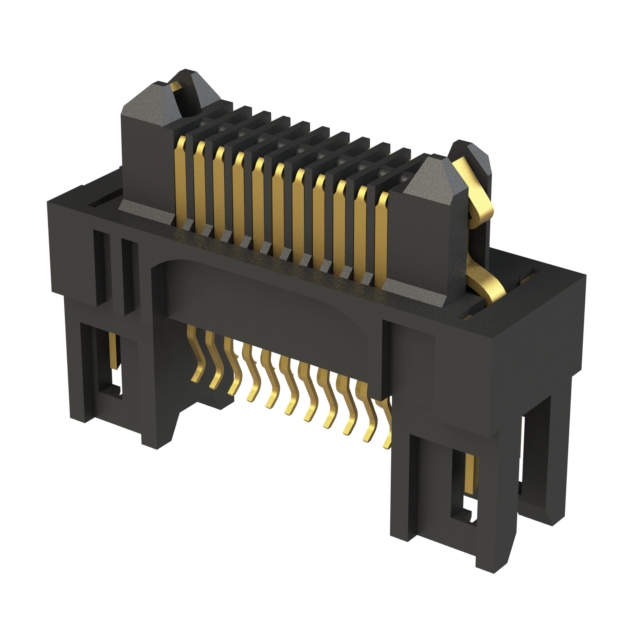

ERM8-011-01-S-D-EM2-L-TR

Active

Samtec Inc.

CONN HDR 22POS EDGE MNT GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-011-01-S-D-EM2-L-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Latches
Mounting Type	Board Edge, Straddle Mount
Number of Positions	22 positions
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-011 Series

Part	Contact Finish	Connector Type	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Features	Mated Stacking Heights
Samtec Inc. ERM8-011-09.0-L-DV-K-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.508 in	12.91 mm	10 Áin	0.25 Ám	Board Guide Pick and Place	14 mm 16 mm 19 mm
Samtec Inc. ERM8-011-05.0-S-DV-L-K-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.351 in	8.91 mm	30 Áin	0.76 Ám	Board Guide Latches Pick and Place	10 mm 12 mm 15 mm
Samtec Inc. ERM8-011-05.0-S-DV-K-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.351 in	8.91 mm	30 Áin	0.76 Ám	Board Guide Pick and Place	10 mm 12 mm 15 mm
Samtec Inc. ERM8-011-05.0-L-DV-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.351 in	8.91 mm	10 Áin	0.25 Ám	Board Guide	10 mm 12 mm 15 mm
Samtec Inc. ERM8-011-01-L-D-RA-L-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount Right Angle	0.246 in	6.25 mm	10 Áin	0.25 Ám	Board Guide Latches Mounting Flange
Samtec Inc. ERM8-011-01-S-D-EM2-L-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Board Edge Straddle Mount			30 Áin	0.76 Ám	Latches
Samtec Inc. ERM8-011-05.0-S-DV-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.351 in	8.91 mm	30 Áin	0.76 Ám	Board Guide	10 mm 12 mm 15 mm
Samtec Inc. ERM8-011-01-L-D-EM2-L-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Board Edge Straddle Mount			10 Áin	0.25 Ám	Latches
Samtec Inc. ERM8-011-05.0-L-DV-L-K-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.351 in	8.91 mm	10 Áin	0.25 Ám	Board Guide Latches Pick and Place	10 mm 12 mm 15 mm
Samtec Inc. ERM8-011-02.0-L-DV-TR	Gold	Header Center Strip Contacts	22 positions	2	0.8 mm	0.031 in	Surface Mount	0.235 in	5.97 mm	10 Áin	0.25 Ám	Board Guide	7 mm 9 mm 12 mm
