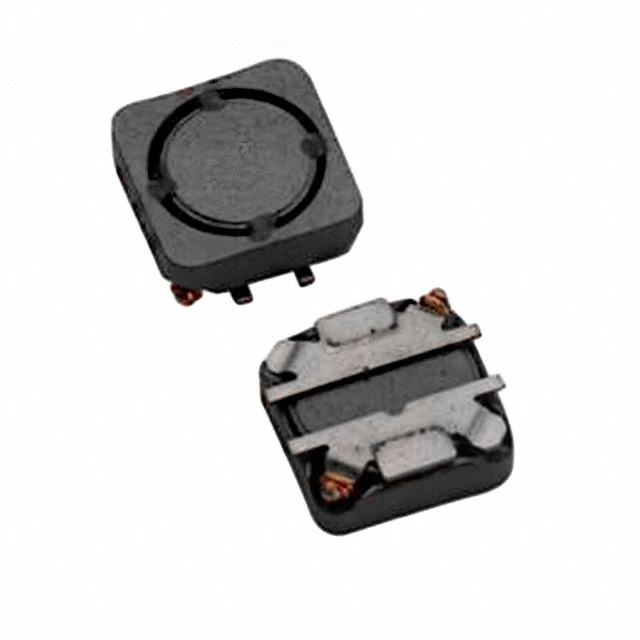

ASPI-0418S-8R2N-T3
ObsoleteAbracon LLC
FIXED IND 8.2UH 1.1A 163MOHM SMD
ASPI-0418S-8R2N-T3
ObsoleteAbracon LLC
FIXED IND 8.2UH 1.1A 163MOHM SMD
Description
General part information
ASPI-0418S-8R2N-T3
8.2 µH Shielded Drum Core, Wirewound Inductor 1.1 A 163mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | ASPI-0418S-8R2N-T3 |
|---|---|
| Current - Saturation (Isat) | 0.9 mA |
| Current Rating | 1.1 A |
| DC Resistance (DCR) (Max) | 163 mOhm |
| Height - Seated (Max) | 0.071 in |
| Inductance | 8.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.165 in |
| Size / Dimension Width | 0.165 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
