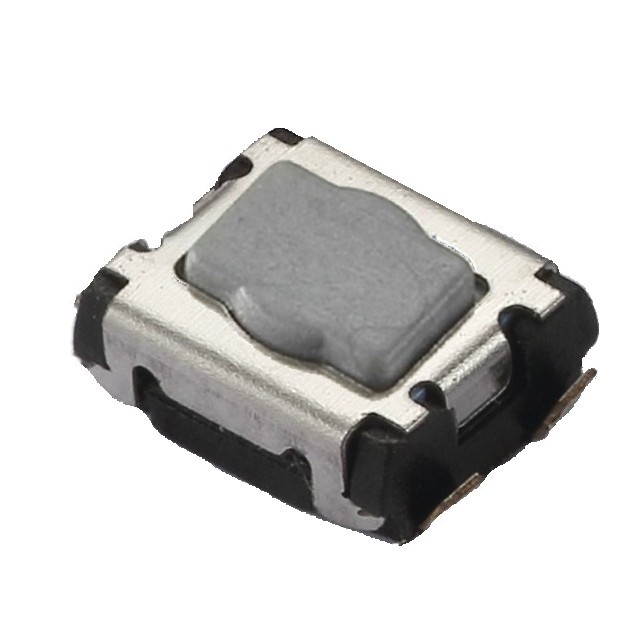

226BJVABR
ActiveCTS Electrocomponents
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
226BJVABR
ActiveCTS Electrocomponents
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 226BJVABR | 226BJV Series |
|---|---|---|
| Actuator Height off PCB, Vertical | 1.7 mm | 1.7 mm |
| Actuator Orientation | Top Actuated | Top Actuated |
| Actuator Type | Standard | Standard |
| Circuit | SPST-NO | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC | 0.05 - 12 A |
| Features | Tactile Feedback | Tactile Feedback, Grounding Pin |
| Illumination | Non-Illuminated | Non-Illuminated |
| Mechanical Life | 200000 Cycles | 200000 - 1000000 Cycles |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Force | - | 0.5 - 350 gf |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outline [x] | 3.5 mm | 3.5 mm |
| Outline [y] | 2.9 mm | 2.9 mm |
| Switch Function | Off-Mom | Off-Mom |
| Switch Travel | 0.15 mm | 0.15 mm |
| Termination Style | J Lead | J Lead |
226BJV Series
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Contact Rating @ Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Actuator Type | Actuator Height off PCB, Vertical | Mounting Type | Outline [y] | Outline [x] | Switch Function | Mechanical Life | Operating Force | Illumination | Circuit | Actuator Orientation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CTS Electrocomponents 226BJVAARG | 0.15 mm | 0.05 A, 12 VDC | 85 °C | -40 °C | J Lead | Standard | 1.7 mm | Surface Mount | 2.9 mm | 3.5 mm | Off-Mom | 1000000 Cycles | 100 gf | Non-Illuminated | SPST-NO | Top Actuated | Grounding Pin, Tactile Feedback |
CTS Electrocomponents 226BJVACR | 0.15 mm | 0.05 A, 12 VDC | 85 °C | -40 °C | J Lead | Standard | 1.7 mm | Surface Mount | 2.9 mm | 3.5 mm | Off-Mom | 200000 Cycles | 200 gf | Non-Illuminated | SPST-NO | Top Actuated | Tactile Feedback |
CTS Electrocomponents 226BJVADRG | 0.15 mm | 0.05 A, 12 VDC | 85 °C | -40 °C | J Lead | Standard | 1.7 mm | Surface Mount | 2.9 mm | 3.5 mm | Off-Mom | 200000 Cycles | 350 gf | Non-Illuminated | SPST-NO | Top Actuated | Grounding Pin, Tactile Feedback |
CTS Electrocomponents 226BJVADR | 0.15 mm | 0.05 A, 12 VDC | 85 °C | -40 °C | J Lead | Standard | 1.7 mm | Surface Mount | 2.9 mm | 3.5 mm | Off-Mom | 200000 Cycles | 350 gf | Non-Illuminated | SPST-NO | Top Actuated | Tactile Feedback |
CTS Electrocomponents 226BJVAER | 0.15 mm | 0.05 A, 12 VDC | 85 °C | -40 °C | J Lead | Standard | 1.7 mm | Surface Mount | 2.9 mm | 3.5 mm | Off-Mom | 500000 Cycles | 0.5 kgf | Non-Illuminated | SPST-NO | Top Actuated | Tactile Feedback |
CTS Electrocomponents 226BJVAERG | 0.15 mm | 0.05 A, 12 VDC | 85 °C | -40 °C | J Lead | Standard | 1.7 mm | Surface Mount | 2.9 mm | 3.5 mm | Off-Mom | 500000 Cycles | 0.5 kgf | Non-Illuminated | SPST-NO | Top Actuated | Grounding Pin, Tactile Feedback |
CTS Electrocomponents 226BJVABR | 0.15 mm | 0.05 A, 12 VDC | 85 °C | -40 °C | J Lead | Standard | 1.7 mm | Surface Mount | 2.9 mm | 3.5 mm | Off-Mom | 200000 Cycles | Non-Illuminated | SPST-NO | Top Actuated | Tactile Feedback |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 12000 | $ 0.19 | |
Description
General part information
226BJV Series
Tactile Switch SPST-NO Top Actuated Surface Mount
Documents
Technical documentation and resources
