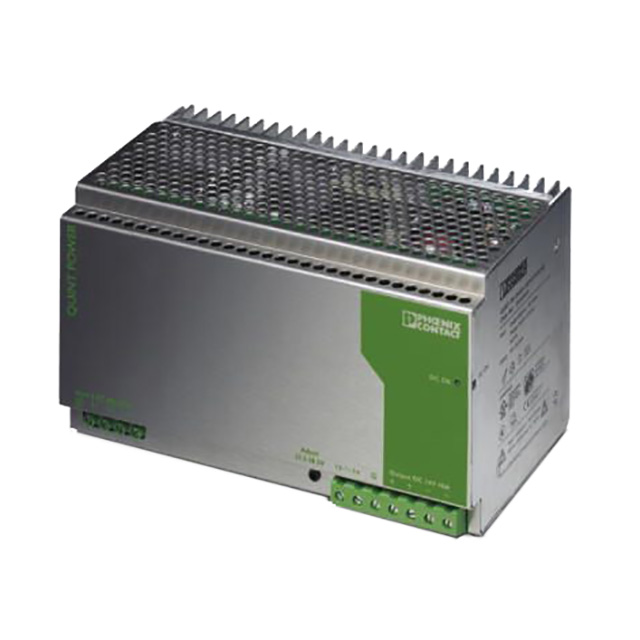

Specification	2938646

AC Voltage - Input (Max)	500 VAC
AC Voltage - Input (Min)	400 VAC
Applications	ITE (Commercial)
Approval Agency	CB, cURus, cULus
Current - Output (Max)	40 A
Efficiency	91 %
Features	IP20, Load Sharing, Universal Input, Adjustable Output
Input Type	AC
Minimum Load Required	No
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Power (Watts)	960 W
Size / Dimension Height	5.12 in
Size / Dimension Length	4.92 in
Size / Dimension Width	9.45 in
Voltage - Isolation	4000 Vpk
Voltage - Output 1	24 V
