XRP7740EVB
ActiveMaxLinear, Inc.

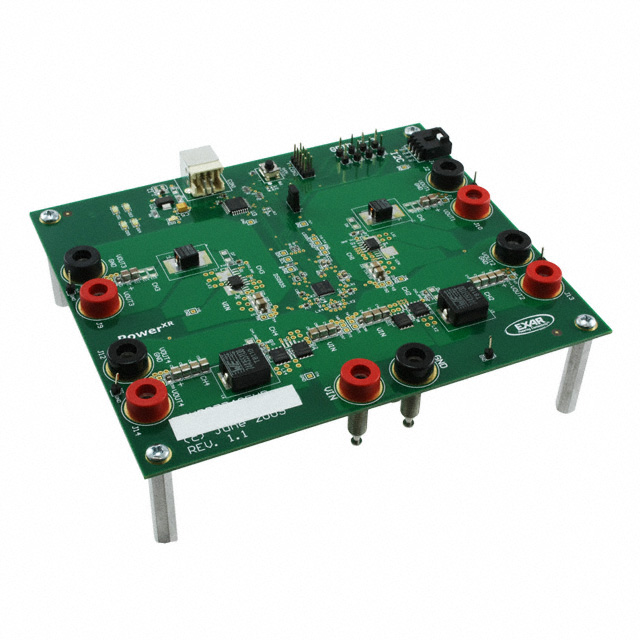

EVAL BOARD FOR XRP7740
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPower XR Family
XRP7740EVB
ActiveMaxLinear, Inc.
EVAL BOARD FOR XRP7740
Deep-Dive with AI
DocumentsPower XR Family
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XRP7740EVB | XRP7740 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Frequency - Switching | - | 1.5 MHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Up or Down with LDO, DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 5 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | - | 4 |
| Outputs and Type | - | Non-Isolated |
| Package / Case | - | 40-WFQFN Exposed Pad |
| Regulator Topology | Buck | Buck |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 40-TQFN |
| Topology | - | Step-Down (Buck) Synchronous (4), Linear (LDO) (1) |
| Utilized IC / Part | XRP7740 | XRP7740 |
| Voltage - Input | - | 20 V |
| Voltage - Input | - | 6.5 V |
| Voltage - Output | - | 0.9 V |
| Voltage - Output | - | 5.1 V |
| Voltage - Supply | - | 20 V |
| Voltage - Supply | - | 6.5 VDC |
| Voltage/Current - Output 1 | - | Controller |
| Voltage/Current - Output 2 | - | Controller |
| Voltage/Current - Output 3 | - | Controller |
| w/LED Driver | - | False |
| w/Sequencer | - | True |
| w/Supervisor | - | False |
XRP7740 Series
DEMO BOARD XRP7740 HIGH CURRENT
| Part | Outputs and Type | Outputs and Type | Utilized IC / Part | Main Purpose | Regulator Topology | Board Type | Supplied Contents | Voltage - Output [Min] | Voltage - Output [Max] | Frequency - Switching | Voltage - Input [Max] | Voltage - Input [Min] | Package / Case | Number of Outputs | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Max] | Operating Temperature [Min] | w/LED Driver | w/Supervisor | Supplier Device Package | Mounting Type | Voltage/Current - Output 3 | Topology | Voltage/Current - Output 2 | w/Sequencer | Voltage/Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MaxLinear, Inc. XRP7740EVB-HC | 4 | Non-Isolated | XRP7740 | DC/DC, Step Up or Down with LDO | Buck | Fully Populated | Board(s) | 0.9 V | 5.1 V | 1.5 MHz | 20 V | 6.5 V | |||||||||||||||
MaxLinear, Inc. XRP7740ILB-F | 1.5 MHz | 40-WFQFN Exposed Pad | 5 | 20 V | 6.5 VDC | 125 °C | -40 °C | 40-TQFN | Surface Mount | Controller | Linear (LDO) (1), Step-Down (Buck) Synchronous (4) | Controller | Controller | ||||||||||||||
MaxLinear, Inc. XRP7740ILBTR-F | 1.5 MHz | 40-WFQFN Exposed Pad | 5 | 20 V | 6.5 VDC | 125 °C | -40 °C | 40-TQFN | Surface Mount | Controller | Linear (LDO) (1), Step-Down (Buck) Synchronous (4) | Controller | Controller | ||||||||||||||
MaxLinear, Inc. XRP7740EVB | XRP7740 | DC/DC, Step Down | Buck | Fully Populated | Board(s) | ||||||||||||||||||||||
MaxLinear, Inc. XRP7740ILB-NTC-F | 1.5 MHz | 40-WFQFN Exposed Pad | 5 | 20 V | 6.5 VDC | 125 °C | -40 °C | 40-TQFN | Surface Mount | Controller | Linear (LDO) (1), Step-Down (Buck) Synchronous (4) | Controller | Controller |
