WL0F00043000WGAABSA00
ActiveWinstar Display

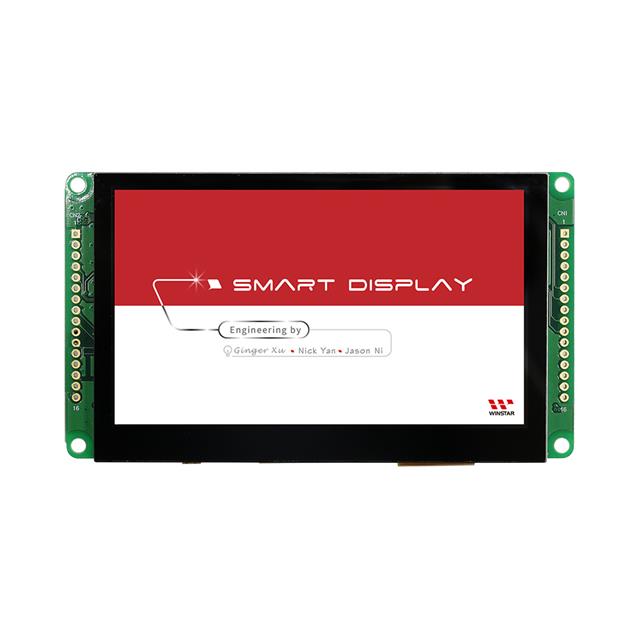

4.3 INCH CAN BUS SMART DISPLAY
WL0F00043000WGAABSA00
ActiveWinstar Display
4.3 INCH CAN BUS SMART DISPLAY
Description
General part information
WL0F00043000WGAABSA00
Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color CAN 4.3" (109.22mm) 480 x 272
Technical Specifications
Parameters and characteristics for this part
| Specification | WL0F00043000WGAABSA00 |
|---|---|
| Background Color | Black |
| Backlight | Without Backlight |
| Controller Type | STM32F750 |
| Diagonal Screen Size | 4.3 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch Height | 0.2 mm |
| Dot Pitch Width | 0.07 mm |
| Dot Pixels (Horizontal) | 480 pixels |
| Dot Pixels (Vertical) | 272 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | CAN |
| Touchscreen | Capacitive |
| Viewing Area Height | 54.66 mm |
| Viewing Area Width | 96.24 mm |
