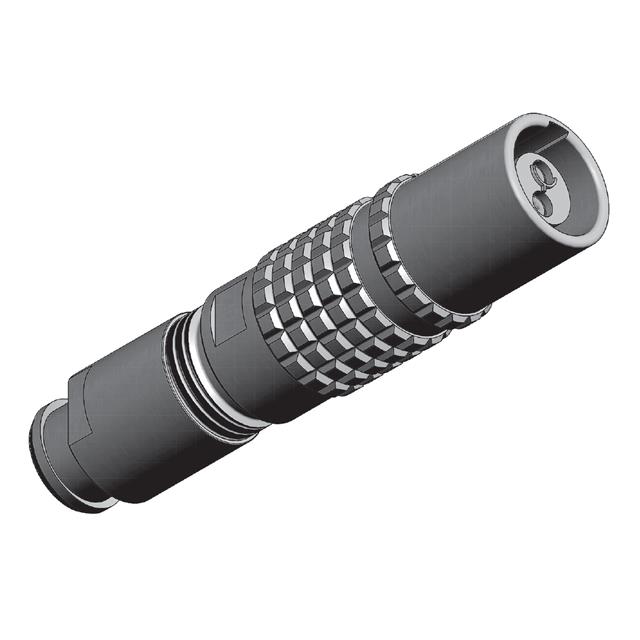

PHG.2T.514.CYMC75Z
ActiveLEMO
CABLE MOUNT RECEPTACLE CAT6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PHG.2T.514.CYMC75Z
ActiveLEMO
CABLE MOUNT RECEPTACLE CAT6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PHG.2T.514.CYMC75Z | PHG.2T Series |
|---|---|---|
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome |
| Cable Opening | - | 0.319 - 0.335 in |
| Cable Opening | - | 8.1 - 8.5 mm |
| Cable Opening [Max] [custom] | 0.295 in | 0.295 in |
| Cable Opening [Max] [custom] | 7.5 mm | 7.5 mm |
| Cable Opening [Min] [custom] | 0.28 in | 0.28 in |
| Cable Opening [Min] [custom] | 7.1 mm | 7.1 mm |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | - | 59 Áin |
| Contact Finish Thickness - Mating | - | 1.5 Ám |
| Contact Material | - | Bronze |
| Current Rating (Amps) | - | 7 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof, IP66/IP68 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 14 | 12 - 14 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 514 | 312 - 514 |
| Shielding | Shielded | Shielded |
PHG.2T Series
CABLE MOUNT RECEPTACLE CAT6
| Part | Primary Material | Orientation | Backshell Material, Plating | Features | Fastening Type | Number of Positions | Shell Finish | Connector Type | Mounting Type | Color | Contact Finish - Mating | Insert Material | Shielding | Shell Size - Insert | Ingress Protection | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Contact Material | Cable Opening [custom] | Cable Opening [custom] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metal | G | Brass, Chrome | Backshell | Detent Lock, Push-Pull | 14 | Chrome | Receptacle, Female Sockets | Free Hanging (In-Line) | Silver | Gold | Polyetheretherketone (PEEK) | Shielded | 514 | IP68 - Dust Tight, Waterproof | 0.28 in | 7.1 mm | 0.295 in | 7.5 mm | -55 °C | 200 °C | Brass | ||||||||
Metal | G | Brass, Chrome | Backshell | Push-Pull | 12 | Chrome | Receptacle, Female Sockets | Free Hanging (In-Line) | Silver | Gold | Polyetheretherketone (PEEK) | Shielded | 312 | IP66/IP68 | -55 °C | 200 °C | Brass | Bronze | 0.319 in, 0.335 in | 8.1 mm, 8.5 mm | 59 Áin | 1.5 Ám | UL94 V-0 | 7 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 99.69 | |
| 10 | $ 91.48 | |||
| 25 | $ 87.96 | |||
| 50 | $ 85.03 | |||
| 100 | $ 80.34 | |||
Description
General part information
PHG.2T Series
14 Position Circular Connector Receptacle, Female Sockets Solder Cup
