SJOOW1202-50

Active

Remington Industries

PORTABLE CORD 2CON 12AWG BLK 50'

Search across all available documentation for this part.

Active

Remington Industries

PORTABLE CORD 2CON 12AWG BLK 50'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 118.48

General part information

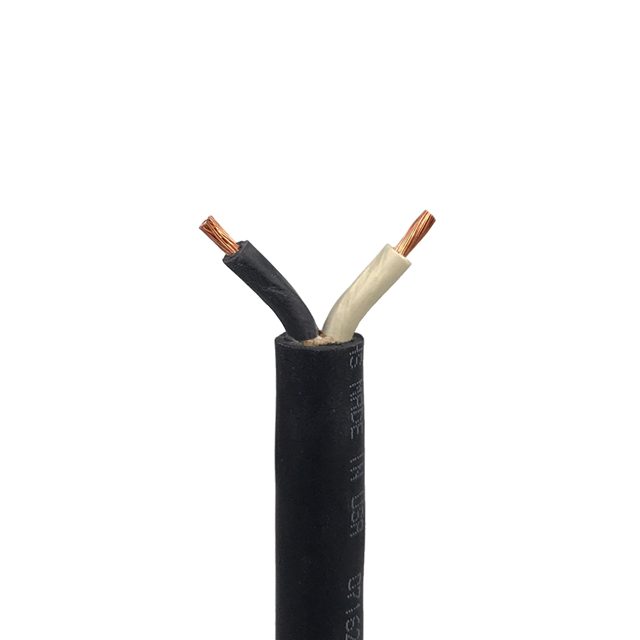

2 Conductor Portable Cord Cable Black 12 AWG 50.00' (15.24m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SJOOW1202-50	SJOOW1202 Series

Cable Type	Portable Cord	Portable Cord
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	30 AWG	30 AWG
Conductor Strand [custom]	65	65
Features	Oil Resistant, Abrasion Resistant, Chemical Resistant, Water Resistant, UV Resistant	Oil Resistant, Abrasion Resistant, Chemical Resistant, Water Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	10.41 mm	10.41 mm
Jacket (Insulation) Diameter [diameter]	0.41 in	0.41 in
Jacket (Insulation) Material	Chlorinated Polyethylene (CPE)	Chlorinated Polyethylene (CPE)
Jacket (Insulation) Thickness	0.762 mm	0.762 mm
Jacket (Insulation) Thickness	0.03 in	0.03 in
Jacket Color	Black	Black
Length	15.24 m	15.24 - 76.2 m
Length	-	7.62 m
Length	-	3000 "
Length [x]	50 ft	25 - 50 ft
Number of Conductors	2	2
Operating Temperature	194 °F	194 °F
Ratings	UL Style SJOOW	UL Style SJOOW
Usage	Portable Power Tools and Equipment	Portable Power Tools and Equipment
Voltage	300 V	300 V
Wire Gauge	12 AWG	12 AWG

PORTABLE CORD 2CON 12AWG BLK 50'

Part	Operating Temperature	Jacket Color	Voltage	Usage	Features	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Length	Length [x]	Number of Conductors	Ratings	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length
Remington Industries SJOOW1202-50	194 °F	Black	300 V	Portable Power Tools and Equipment	Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant	Copper, Bare	10.41 mm	0.41 in	Portable Cord	12 AWG	0.762 mm	0.03 in	Ethylene Propylene Terpolymer Rubber (EPDM)	15.24 m	50 ft	2	UL Style SJOOW	Chlorinated Polyethylene (CPE)	30 AWG	65
Remington Industries SJOOW1202-25	194 °F	Black	300 V	Portable Power Tools and Equipment	Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant	Copper, Bare	10.41 mm	0.41 in	Portable Cord	12 AWG	0.762 mm	0.03 in	Ethylene Propylene Terpolymer Rubber (EPDM)		25 ft	2	UL Style SJOOW	Chlorinated Polyethylene (CPE)	30 AWG	65	7.62 m
Remington Industries SJOOW1202-250	194 °F	Black	300 V	Portable Power Tools and Equipment	Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant	Copper, Bare	10.41 mm	0.41 in	Portable Cord	12 AWG	0.762 mm	0.03 in	Ethylene Propylene Terpolymer Rubber (EPDM)	76.2 m		2	UL Style SJOOW	Chlorinated Polyethylene (CPE)	30 AWG	65		3000 "
