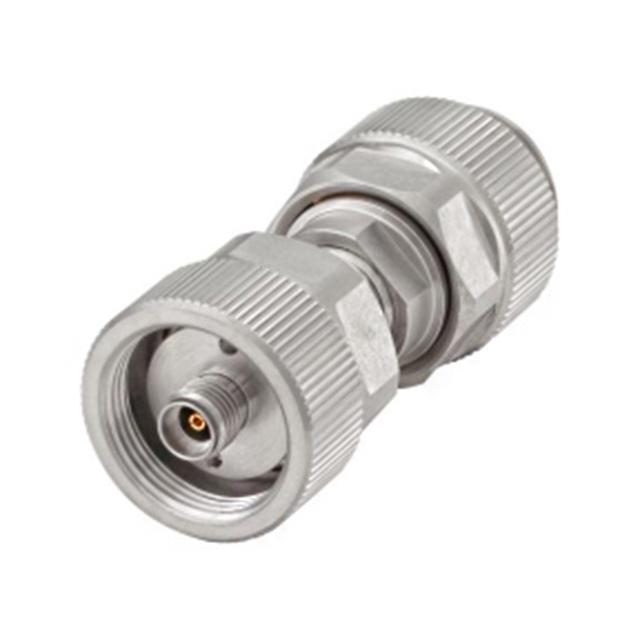

03KR121-SR00S3
ActiveRosenberger
PRECISION 3.5 TESTPORT ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
03KR121-SR00S3
ActiveRosenberger
PRECISION 3.5 TESTPORT ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 03KR121-SR00S3 |
|---|---|
| Adapter Series [Max] | RPC-3.50 |
| Adapter Series [Min] | RPC-3.50 |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 3.5mm Plug, Male Pin |
| Convert To (Adapter End) | 3.5mm Jack, Female Socket |
| Dielectric Material | Polystyrene (PS) |
| Frequency - Max [Max] | 26.5 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.21 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1023.35 | |
Description
General part information
03KR121-SR00S3
Adapter Coaxial Connector 3.5mm Plug, Male Pin To 3.5mm Jack, Female Socket 50 Ohms
