0606KQP188
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
0606KQP188
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
Description
General part information
0606KQP188

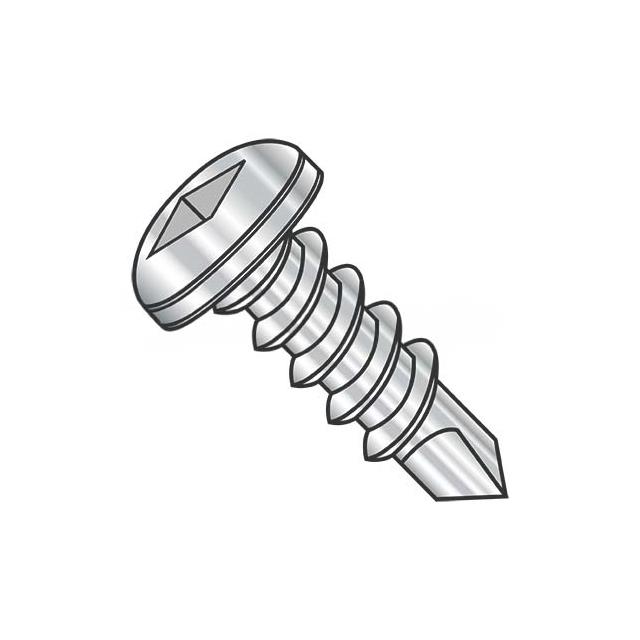

#6-20 Pan Head Self-Drilling Screw Square Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 0606KQP188 |
|---|---|
| Drive Type | Square |
| Features | Standard |
| Head Diameter | 0.263 in |
| Head Height | 0.092 in |
| Length - Below Head | 0.375 in |
| Length - Overall | 0.467 in |
| Material | Stainless Steel |
| Plating | Plain |
| Screw Head Type | Pan Head |
| Thread Size (Max) | 20 mm |
| Thread Size (Min) | 6 mm |
| Type | Self-Drilling Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
