Description
General part information

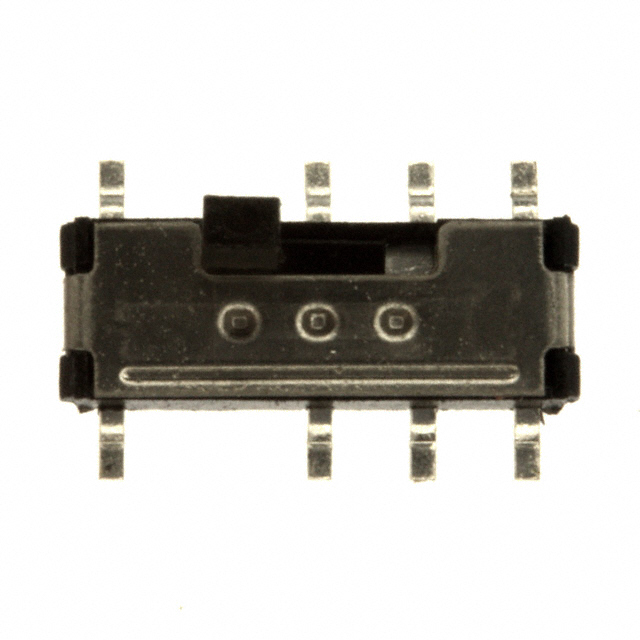

EG1400B
Slide Switch DP3T Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | EG1400B |
|---|---|
| Actuator Length | 2.5 mm |
| Actuator Type | Standard |
| Circuit | DP3T |
| Current Rating | 300 mA |
| Electrical Life (Cycles) | 10000 Cycles |
| Mechanical Life (Cycles) | 10000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 200 gf |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Switch Function | On-On-On |
| Switch Travel | 1.5 mm |
| Termination Style | Gull Wing |
| Voltage Rating - DC | 4 V |
