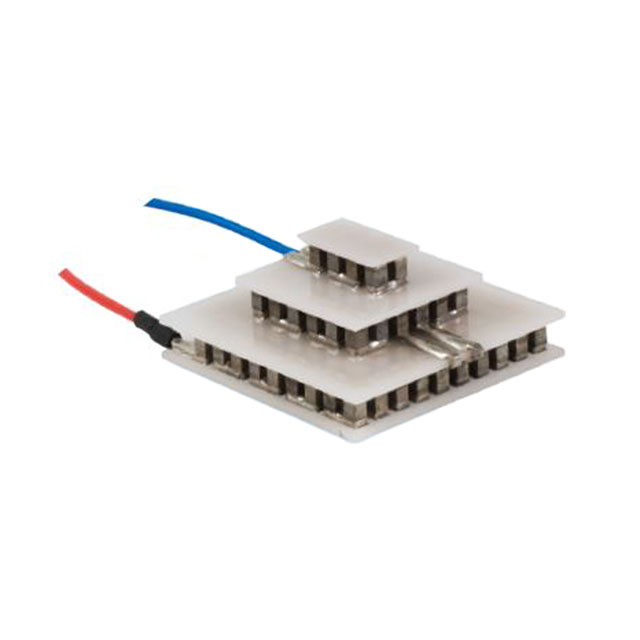

16068-303

Active

Laird Thermal Systems, Inc.

MS3,052,10,17,11 WS,28AWG,PVC

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

MS3,052,10,17,11 WS,28AWG,PVC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	16068-303	16068 Series

Current - Max [Max]	1.8 A	1.8 A
Delta Tmax @ Th	99 °C	99 °C
Features	Lead Wires	Lead Wires, Non-Sealed, Lead Wires
Height [z]	9.78 mm	9.78 - 16 mm
Number of Stages	3	3
Operating Temperature	80 °C	80 °C
Qmax @ Th	1.4 W	1.4 W
Size / Dimension [x]	14.86 mm	14.86 mm
Size / Dimension [y]	14.86 mm	14.86 mm
Voltage - Max [Max]	3.3 V	3.3 V

PELTIER MS3,052,10,17,00,W8

Part	Height [z]	Voltage - Max [Max]	Features	Number of Stages	Delta Tmax @ Th	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Qmax @ Th	Operating Temperature
Laird Thermal Systems, Inc. 16068-304	9.78 mm	3.3 V	Lead Wires, Non-Sealed	3	99 °C	1.8 A	14.86 mm	14.86 mm	1.4 W	80 °C
Laird Thermal Systems, Inc. 16068-303	9.78 mm	3.3 V	Lead Wires	3	99 °C	1.8 A	14.86 mm	14.86 mm	1.4 W	80 °C
Laird Thermal Systems, Inc. 16068-302	16 mm	3.3 V	Lead Wires, Non-Sealed	3	99 °C	1.8 A	14.86 mm	14.86 mm	1.4 W	80 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 130.07
