M39003/09-0251/HSD

Active

Vishay Sprague

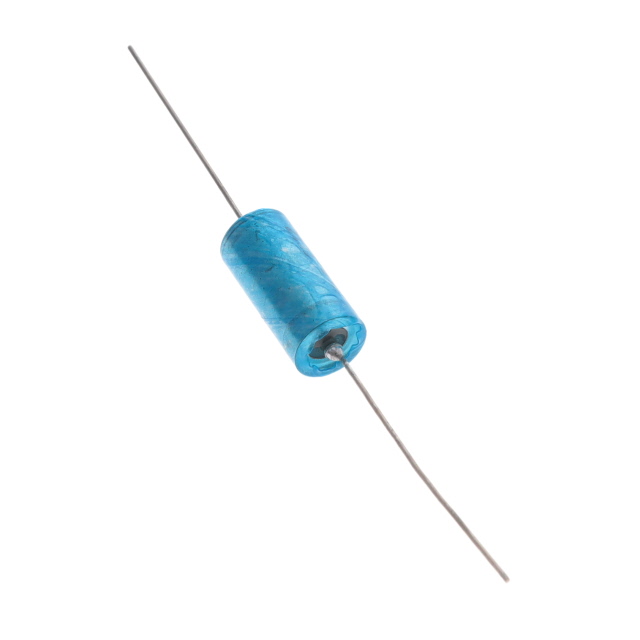

CAP TANT 100UF 10% 20V AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M39003/09-0251/HSD

Active

Vishay Sprague

CAP TANT 100UF 10% 20V AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M39003/09-0251/HSD	M39003/09 Series

Capacitance	100 µF	5.6 - 330 µF
ESR (Equivalent Series Resistance)	75 mOhms	45 - 275 mOhms
Failure Rate	R (0.01%)	P, R (0.01%), B (0.1%), M (1%), S (0.001%), D, C (0.01%)
Features	High Reliability	High Reliability
Grade	Military	Military
Manufacturer Size Code	D	D
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial	Axial
Qualification	MIL-PRF-39003/9	MIL-PRF-39003/9
Size / Dimension [diameter]	8.92 mm	7.34 - 8.92 mm
Size / Dimension [diameter]	0.351 in	0.289 - 0.351 in
Size / Dimension [x]	0.786 "	0.686 - 0.786 in
Size / Dimension [x]	19.96 mm	17.42 - 19.96 mm
Tolerance	10 %	5 - 20 %
Type	Hermetically Sealed	Hermetically Sealed
Voltage - Rated	20 V	6 - 50 V

M39003/09 Series

CAP TANT 47UF 20% 20V AXIAL

...

Part	Failure Rate	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Capacitance	Tolerance	Grade	Type	ESR (Equivalent Series Resistance)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Features	Qualification	Package / Case	Manufacturer Size Code
Vishay Sprague M39003/09-0142	P	Through Hole	-55 °C	125 °C	20 V	47 µF	20 %	Military	Hermetically Sealed	110 mOhms	17.42 mm	0.686 in	0.289 in	7.34 mm	High Reliability	MIL-PRF-39003/9	Axial
Vishay Sprague M39003/09-0168/TR	P	Through Hole	-55 °C	125 °C	50 VDC	6.8 ÁF	5 %	Military	Hermetically Sealed	275 mOhm	17.42 mm	0.686 in	0.289 in	7.34 mm	High Reliability	MIL-PRF-39003/9	Axial
Vishay Sprague M39003/09-0118H	P	Through Hole	-55 °C	125 °C	10 V	180 çF	5 %	Military	Hermetically Sealed	60 mOhms	19.96 mm	0.786 "	0.351 in	8.92 mm	High Reliability	MIL-PRF-39003/9	Axial	D
Vishay Sprague M39003/09-0263/TR	R (0.01%)	Through Hole	-55 °C	125 °C	35 V	47 µF	5 %	Military	Hermetically Sealed	110 mOhms	19.96 mm	0.786 "	0.351 in	8.92 mm	High Reliability	MIL-PRF-39003/9	Axial	D
Vishay Sprague M39003/09-2051/HSD	B (0.1%)	Through Hole	-55 °C	125 °C	20 V	100 µF	10 %	Military	Hermetically Sealed	75 mOhms	19.96 mm	0.786 "	0.351 in	8.92 mm	High Reliability	MIL-PRF-39003/9	Axial	D
Vishay Sprague M39003/09-0078	M (1%)	Through Hole	-55 °C	125 °C	50 VDC	15 µF	5 %	Military	Hermetically Sealed	190 mOhm	17.42 mm	0.686 in	0.289 in	7.34 mm	High Reliability	MIL-PRF-39003/9	Axial
Vishay Sprague M39003/09-0055H	M (1%)	Through Hole	-55 °C	125 °C	35 V	22 µF	20 %	Military	Hermetically Sealed	160 mOhm	17.42 mm	0.686 in	0.289 in	7.34 mm	High Reliability	MIL-PRF-39003/9	Axial
Vishay Sprague M39003/09-0371/HSD	S (0.001%)	Through Hole	-55 °C	125 °C	50 VDC	8.2 µF	5 %	Military	Hermetically Sealed	250 mOhm	17.42 mm	0.686 in	0.289 in	7.34 mm	High Reliability	MIL-PRF-39003/9	Axial
Vishay Sprague M39003/09-0272	R (0.01%)	Through Hole	-55 °C	125 °C	50 VDC	8.2 µF	10 %	Military	Hermetically Sealed	250 mOhm	17.42 mm	0.686 in	0.289 in	7.34 mm	High Reliability	MIL-PRF-39003/9	Axial
Vishay Sprague M39003/09-0261	R (0.01%)	Through Hole	-55 °C	125 °C	35 V	39 µF	5 %	Military	Hermetically Sealed	120 mOhm	19.96 mm	0.786 "	0.351 in	8.92 mm	High Reliability	MIL-PRF-39003/9	Axial	D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 42.74

Description

General part information

M39003/09 Series

100 µF Hermetically Sealed Tantalum Capacitors 20 V Axial 75mOhm
