PEWAN1169
ActivePasternack

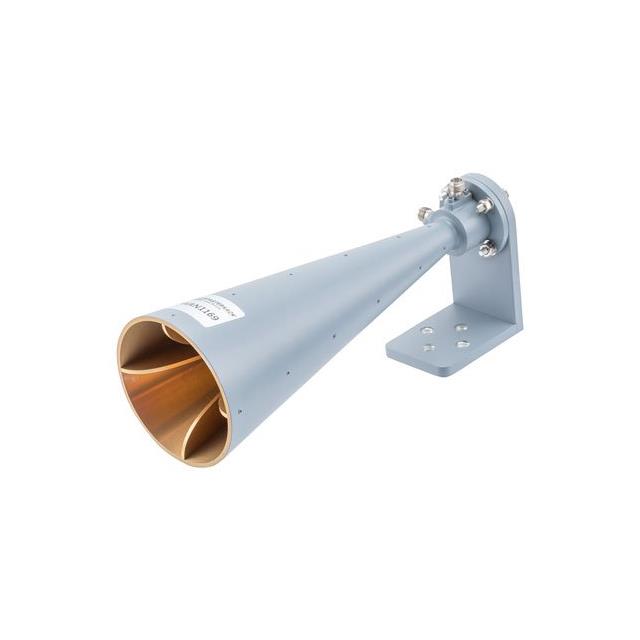

BROADBAND HORN ANTENNA, DUAL POL
PEWAN1169
ActivePasternack
BROADBAND HORN ANTENNA, DUAL POL
Description
General part information
PEWAN1169
33GHz General Purpose Horn RF Antenna 23GHz ~ 43GHz 20dBi 2.92mm Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWAN1169 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Frequency (Center/Band) | 33 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 43 GHz |
| Frequency Range (Min) | 23 GHz |
| Gain | 20 dBi |
| Height (Max) | 6.86 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | Female |
| Termination Gender | Female |
| Termination Pin Count | 0 pins |
| Termination Pitch | 2.92 mm |
| Termination Rows | 0 rows |
| Termination Size | 2.92 mm |
