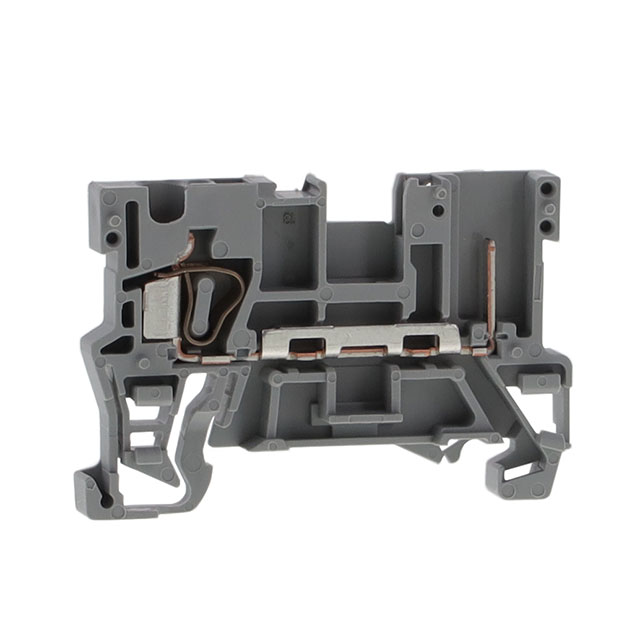

769-176
ActiveWAGO Corporation
1-CONDUCTOR/1-PIN CARRIER TERMIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
769-176
ActiveWAGO Corporation
1-CONDUCTOR/1-PIN CARRIER TERMIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 769-176 |
|---|---|
| Color | Gray |
| Current - IEC | 32 A |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Number of Positions | 1 |
| Stripping Length [Max] [x] | 9 mm |
| Stripping Length [Min] [x] | 8 mm |
| Terminal - Width | 5 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - IEC | 500 V |
| Wire Gauge or Range - AWG [Max] | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 4 mm² |
| Wire Gauge or Range - mm² [Min] | 0.08 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.80 | |
| 10 | $ 2.89 | |||
| 100 | $ 2.36 | |||
| 1000 | $ 1.74 | |||
| 5000 | $ 1.64 | |||
Description
General part information
769-176
Terminal Block Connector 1 Position Feed Through Gray 12-28 AWG
