WMC2P22K-F
ActiveCornell Dubilier Knowles

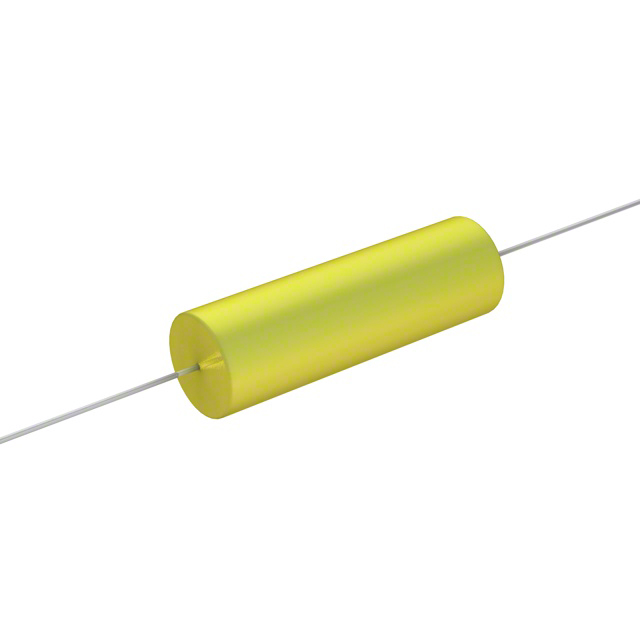

CAP FILM 0.22UF 10% 200VDC AXIAL
WMC2P22K-F
ActiveCornell Dubilier Knowles
CAP FILM 0.22UF 10% 200VDC AXIAL
Description
General part information
WMC2P22K-F
0.22 µF Film Capacitor 125V 200V Polyester Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | WMC2P22K-F |
|---|---|
| Applications | High Pulse, DV/DT |
| Capacitance | 0.22 µF |
| Dielectric Material | Polyester |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.382 in |
| Size / Dimension Length | 1.217 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
