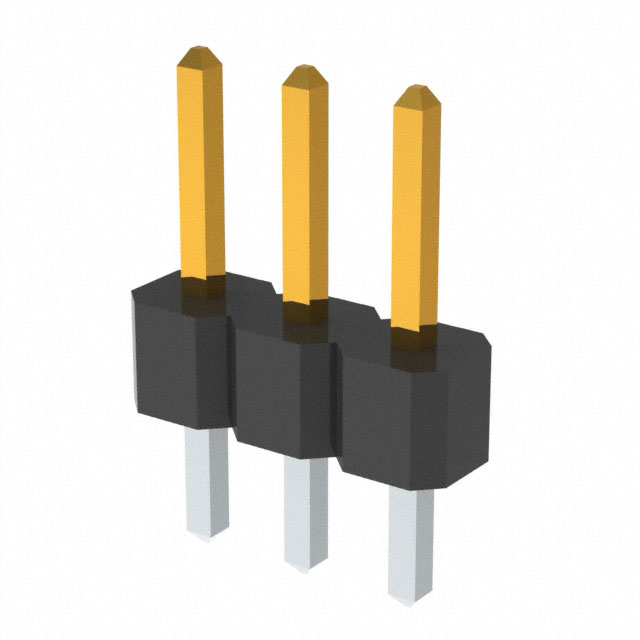

PCC03SAAN

Active

Sullins Connector Solutions

BOARD CONNECTOR, 3 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL

Search across all available documentation for this part.

Active

Sullins Connector Solutions

BOARD CONNECTOR, 3 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL

Technical Specifications

Parameters and characteristics for this part

Specification	PCC03SAAN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.45 "
Overall Contact Length	11.43 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Style	Current Rating (Amps)	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Insulation Material	Contact Finish - Post	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Contact Type	Mounting Type	Material Flammability Rating	Number of Positions Loaded	Contact Shape	Contact Material	Fastening Type
Sullins Connector Solutions PCC03SAAN	Board to Board Cable	3 A	Breakaway Header	2.54 µm	100 µin	Solder	Polybutylene Terephthalate (PBT)	Tin	1	30 Áin	0.76 Ám	0.23 in	5.84 mm	125 °C	-65 ░C	Unshrouded	Black	0.1 in	2.54 mm	0.1 in	2.54 mm	Gold	0.12 in	3.05 mm	0.45 "	11.43 mm	Male Pin	Through Hole	UL94 V-0	All	Square	Phosphor Bronze	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 3 position 0.100" (2.54mm)
