12734/3/1

Active

BULGIN LIMITED

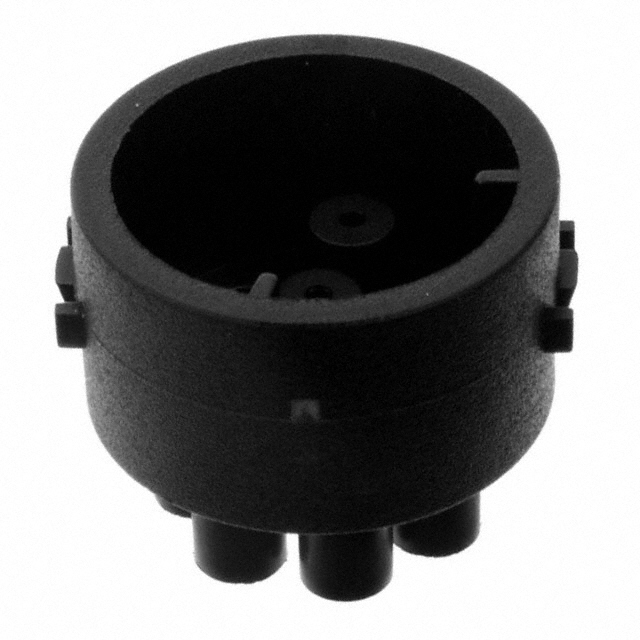

CIRCULAR CONNECTOR INSERT, BUCCANEER MINI SERIES, 3 CONTACTS, PIN, SOLDER, GOLD PLATED CONTACTS

Search across all available documentation for this part.

Active

BULGIN LIMITED

CIRCULAR CONNECTOR INSERT, BUCCANEER MINI SERIES, 3 CONTACTS, PIN, SOLDER, GOLD PLATED CONTACTS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3-Pin solder plug contact carrier insert for Mini Buccaneer® series connectors

Technical documentation and resources

Specification	12734/3/1	12734 Series

Contact Shape	Circular	Circular
Contact Type	Solder Cup	Crimp, Solder Cup
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0
Note	Note: Contacts Not Included; Insert Only, Requires Shell	Note: Contacts Not Included; Insert Only, Requires Shell
Number of Positions [custom]	3	3
Number of Positions [custom]	1	1
Number of Positions [custom]	2	2
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation	Keyed	Keyed
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

Part	Contact Shape	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Shielding	Note	Contact Type	Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Insert Material	Orientation
BULGIN LIMITED 12734/3	Circular	IP68 - Dust Tight, Waterproof	-20 C	70 °C	UL94 V-0	Unshielded	Note: Contacts Not Included; Insert Only, Requires Shell	Crimp	For Male Pins	3	1	2	Nylon, Polyamide (PA)	Keyed
BULGIN LIMITED 12734/3/1	Circular	IP68 - Dust Tight, Waterproof	-20 C	70 °C	UL94 V-0	Unshielded	Note: Contacts Not Included; Insert Only, Requires Shell	Solder Cup	For Male Pins	3	1	2	Nylon, Polyamide (PA)	Keyed
