1408149-1
ActiveTE Connectivity AMP Connectors

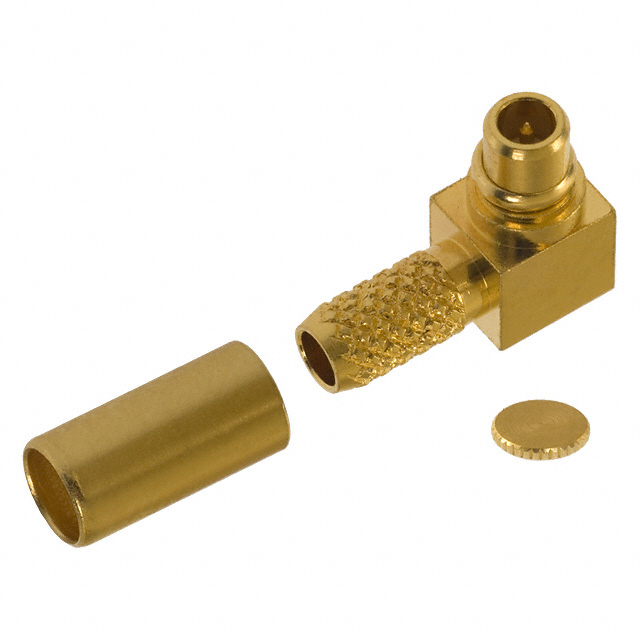

CONN MMCX PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1408149-1
ActiveTE Connectivity AMP Connectors
CONN MMCX PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1408149-1 | 1408149 Series |
|---|---|---|
| Cable Group | 196 | 196 |
| Cable Group | RG-178 | RD-316, RG-316, RG-178 |
| Center Contact Plating | Gold | Gold |
| Connector Style | MMCX | MMCX |
| Connector Type | Male Pin, Plug | Male Pin, Plug |
| Contact Termination | Solder | Solder |
| Fastening Type | Snap-On | Snap-On |
| Frequency - Max [Max] | 6000 MHz | 6000 MHz |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | 1 Connector, 1 Ferrule, 1 End Cap | 1 Connector, 1 Ferrule, 1 End Cap |
| Mating Cycles | 500 | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 155 °C | 155 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shield Termination | Crimp | Crimp |
| Voltage Rating | 170 V | 170 V |
1408149 Series
CONN MMCX PLUG R/A 50 OHM SOLDER
| Part | Shield Termination | Cable Group | Mating Cycles | Contact Termination | Mounting Type | Frequency - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Center Contact Plating | Connector Style | Includes | Voltage Rating | Fastening Type | Connector Type | Impedance | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1408149-3 | Crimp | RD-316 | 500 | Solder | Free Hanging (In-Line), Right Angle | 6000 MHz | 155 °C | -55 °C | 1 | Gold | MMCX | 1 Connector, 1 End Cap, 1 Ferrule | 170 V | Snap-On | Male Pin, Plug | 50 Ohms | |
TE Connectivity AMP Connectors 1408149-2 | Crimp | RG-316 | 500 | Solder | Free Hanging (In-Line), Right Angle | 6000 MHz | 155 °C | -55 °C | 1 | Gold | MMCX | 1 Connector, 1 End Cap, 1 Ferrule | 170 V | Snap-On | Male Pin, Plug | 50 Ohms | |
TE Connectivity AMP Connectors 1408149-1 | Crimp | RG-178 | 500 | Solder | Free Hanging (In-Line), Right Angle | 6000 MHz | 155 °C | -55 °C | 1 | Gold | MMCX | 1 Connector, 1 End Cap, 1 Ferrule | 170 V | Snap-On | Male Pin, Plug | 50 Ohms | 196 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1408149 Series
MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
