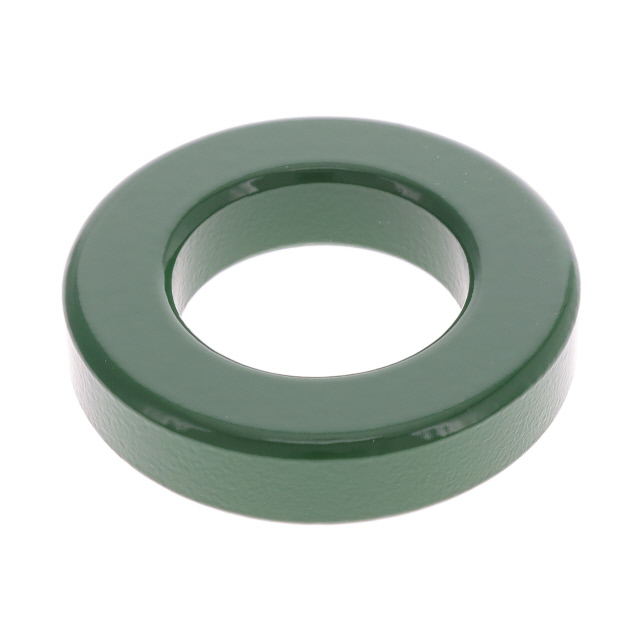

Specification	5952003821

Core Factor (ΣI/A) mm⁻¹	0.92 mm⁻¹
Core Type	Toroid
Diameter	2.433 in
Effective Area (Ae)	158 mm²
Effective Length (le)	145 mm
Effective Magnetic Volume (Ve)	22800 mm³
Finish	Plastic
Gap	Ungapped
Height	0.539 in
Inductance Factor (Al)	325 nH
Initial Permeability (µi)	250
Material	52
Material Temperature Rating	52 °C
Tolerance	25 %
