X-NUCLEO-OUT02A1
ActiveINDUSTRIAL DIGITAL OUTPUT EXPANSION BOARD BASED ON ISO8200AQ FOR STM32 NUCLEO
Deep-Dive with AI
Search across all available documentation for this part.
X-NUCLEO-OUT02A1
ActiveINDUSTRIAL DIGITAL OUTPUT EXPANSION BOARD BASED ON ISO8200AQ FOR STM32 NUCLEO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-OUT02A1 | X-NUCLEO-OUT02A1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Driver | Driver |
| Interconnect System | ST Morpho, Arduino R3 Shield | ST Morpho, Arduino R3 Shield |
| Platform | Nucleo | Nucleo |
| Type | Power Management | Power Management |
| Utilized IC / Part | ISO8200AQ | ISO8200AQ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
X-NUCLEO-OUT02A1 Series
Industrial digital output expansion board based on ISO8200AQ for STM32 Nucleo
| Part | Utilized IC / Part | Interconnect System | Contents | Type | Function | Platform |
|---|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-OUT02A1 | ISO8200AQ | Arduino R3 Shield, ST Morpho | Board(s) | Power Management | Driver | Nucleo |
STMicroelectronics X-NUCLEO-OUT02A1 | ||||||
STMicroelectronics X-NUCLEO-OUT02A1 |
Description
General part information
X-NUCLEO-OUT02A1 Series

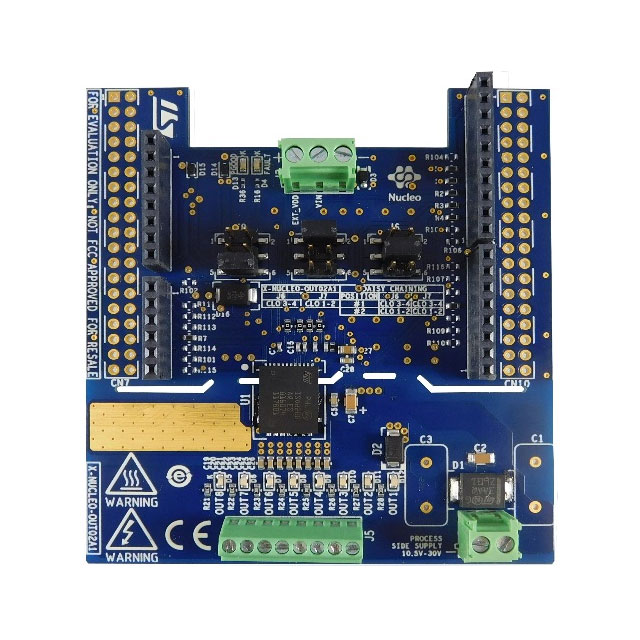

The X-NUCLEO-OUT02A1 industrial digital output expansion board for STM32 Nucleo is based on the ISO8200AQ galvanic isolated octal high-side smart power solid state-relay.
It provides an affordable and easy-to-use solution for the development of 8-channel digital output modules, letting you easily evaluate the ISO8200AQ communication and industrial load driving features.
The X-NUCLEO-OUT02A1 can be connected to a NUCLEO-F401RE or NUCLEO-F334R8 development board via Arduino™ UNO R3 connectors.
