Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4435.0144 | TA35 Series |
|---|---|---|
| Actuator Type | Rocker | Rocker |
| Breaker Type | Thermal | Thermal |
| Current Rating (Amps) | 5 A | 2 - 16 A |
| Illumination | Green | Blue, Green |
| Illumination Voltage (Nominal) | 240 V | 12 - 240 VDC |
| Number of Poles | 2 | 1 - 2 |
| Voltage Rating - AC | 240 V | 240 V |
| Voltage Rating - DC | 60 VDC | 32 - 60 VDC |
TA35 Series

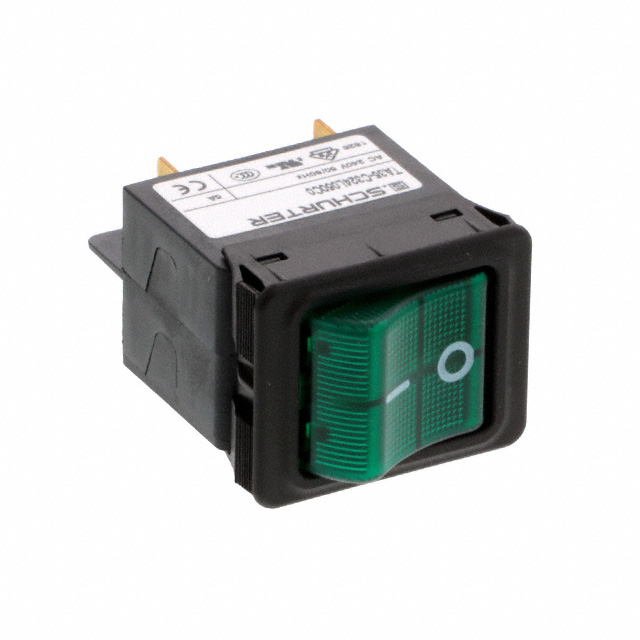

Circuit Breakers CBE TA35-C387M050C0
| Part | Voltage Rating - DC | Actuator Type | Voltage Rating - AC | Current Rating (Amps) | Number of Poles | Breaker Type | Illumination | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 4435.0169 | 60 VDC | Rocker | 240 V | 5 A | 2 | Thermal | Blue | 12 VDC |
SCHURTER Inc. 4435.0301 | 32 V | Rocker | 240 V | 16 A | 1 | Thermal | ||
SCHURTER Inc. 4435.0144 | 60 VDC | Rocker | 240 V | 5 A | 2 | Thermal | Green | 240 V |
SCHURTER Inc. 4435.0282 | 32 V | Rocker | 240 V | 16 A | 1 | Thermal | ||
SCHURTER Inc. 4435.0186 | 60 VDC | Rocker | 240 V | 2 A | 2 | Thermal | Green | 240 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TA35 Series
Circuit Breakers CBE TA35-C387M050C0
Documents
Technical documentation and resources
