T4152113002-001
ActiveTE Connectivity AMP Connectors

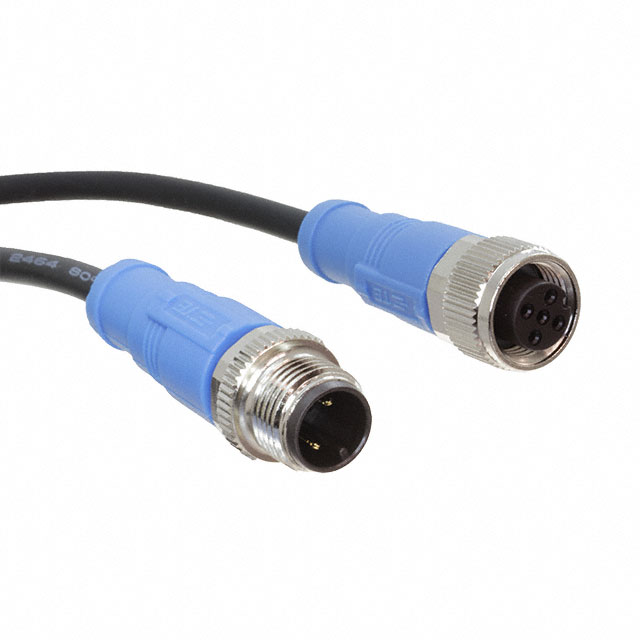

CBL 5POS MALE TO FMALE 1.64'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4152113002-001 | T41521 Series |
|---|---|---|
| - | - | |
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 | 5 |
| 1st Connector Number of Positions Loaded | 2 | 2 - 4 |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Receptacle | Receptacle |
| 2nd Connector Gender | Female Sockets | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 | 5 |
| 2nd Connector Number of Positions Loaded | 2 | 2 - 4 |
| 2nd Connector Shell Size - Insert | M12 | M12 |
| 2nd Connector Type | Plug | Plug, Plug, Right Angle |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC), Polyurethane (PUR) |
| Cable Type | Round | Round |
| Color | Black | Black, Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length [x] | 1.64 ft | 1.64 ft |
| Length [x] | 500 mm | 500 mm |
| Shielding | Unshielded | Unshielded |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 20 | $ 16.09 | |
T41521 Series
CBL 5POS MALE TO FMALE 1.64'
| Part | 1st Connector Shell Size - Insert | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 1st Connector Type | Cable Type | Cable Material | 2nd Connector Mounting Type | 2nd Connector Gender | 1st Connector Number of Positions Loaded | Ingress Protection | 1st Connector Mounting Type | 1st Connector Gender | 1st Connector Number of Positions | Usage | 2nd Connector Shell Size - Insert | 1st Connector Orientation | 2nd Connector Type | Shielding | Color | Length [x] | Length [x] | Assembly Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4152113002-001 | M12 | 5 | 2 | Receptacle | Round | Polyvinyl Chloride (PVC) | Free Hanging (In-Line) | Female Sockets | 2 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Male Pins | 5 | Industrial Environments | M12 | A | Plug | Unshielded | Black | 1.64 ft | 500 mm | Standard |
TE Connectivity AMP Connectors T4152113505-001 | ||||||||||||||||||||||
TE Connectivity AMP Connectors T4152124004-001 | M12 | 5 | 4 positions | Receptacle | Round | Polyurethane (PUR) | Free Hanging (In-Line) | Female Sockets | 4 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Male Pins | 5 | Industrial Environments | M12 | A | Plug, Right Angle | Unshielded | Gray | 1.64 ft | 500 mm | Standard |
Description
General part information
T41521 Series
Circular Cable Assembly Unshielded 1.64' (500.00mm)
