ESDALC6V1P3
ActiveSTMicroelectronics

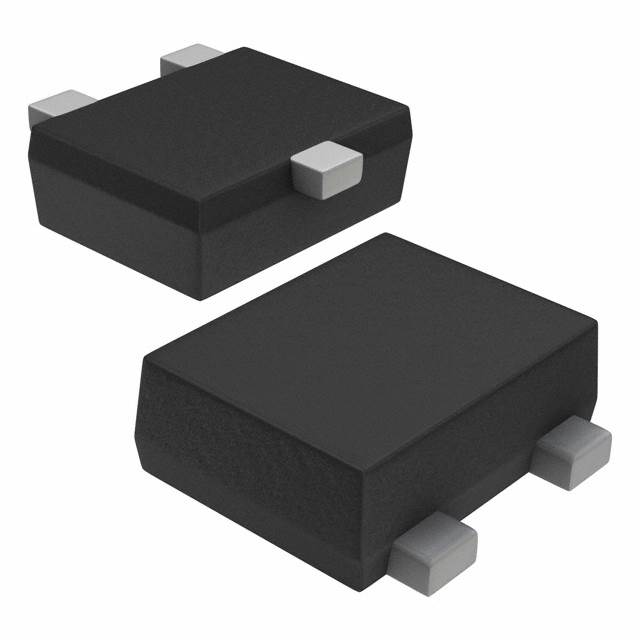

TVS DIODE 3VWM SOT663
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESDALC6V1P3
ActiveSTMicroelectronics
TVS DIODE 3VWM SOT663
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ESDALC6V1P3 | ESDALC6V1 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Bidirectional Channels | - | 1 |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 150 °C | 125 - 150 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | SOT-663 | 5-WFBGA, FCBGA, SOT-663, SOD-882, 6-XFDFN |
| Power - Peak Pulse | 30 W | 25 - 100 W |
| Power Line Protection | False | False |
| Supplier Device Package | SOT-663 | 5-FlipChip, SOT-663, SOD-882T, 6-Micro DFN (1x1) |
| Supplier Device Package | - | 1.32 |
| Supplier Device Package | - | 0.95 |
| Type | Zener | Zener |
| Unidirectional Channels | 2 | 2 |
| Unidirectional Channels | - | 4 - 5 |
| Voltage - Breakdown (Min) [Min] | 6.1 V | 6.1 V |
| Voltage - Reverse Standoff (Typ) | 3 V | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
ESDALC6V1 Series
TVS DIODE 3VWM 5FLIPCHIP
| Part | Applications | Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Breakdown (Min) [Min] | Voltage - Reverse Standoff (Typ) | Unidirectional Channels [custom] | Power - Peak Pulse | Power Line Protection | Mounting Type | Package / Case | Supplier Device Package [x] | Supplier Device Package [y] | Supplier Device Package | Unidirectional Channels | Bidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics ESDALC6V1F2 | General Purpose | Zener | -40 °C | 125 ¯C | 6.1 V | 3 V | 4 | 25 W | Surface Mount | 5-WFBGA, FCBGA | 1.32 | 0.95 | 5-FlipChip | |||
STMicroelectronics ESDALC6V1P3 | General Purpose | Zener | -40 °C | 150 °C | 6.1 V | 3 V | 30 W | Surface Mount | SOT-663 | SOT-663 | 2 | |||||
STMicroelectronics ESDALC6V1-1BT2 | General Purpose | Zener | -40 °C | 125 ¯C | 6.1 V | 3 V | 100 W | Surface Mount | SOD-882 | SOD-882T | 1 | |||||
STMicroelectronics ESDALC6V1-5T6 | General Purpose | Zener | 6.1 V | 3 V | 5 | 25 W | Surface Mount | 6-XFDFN | 6-Micro DFN (1x1) |
Description
General part information
ESDALC6V1 Series
Clamp Ipp Tvs Diode Surface Mount SOT-663
Documents
Technical documentation and resources
