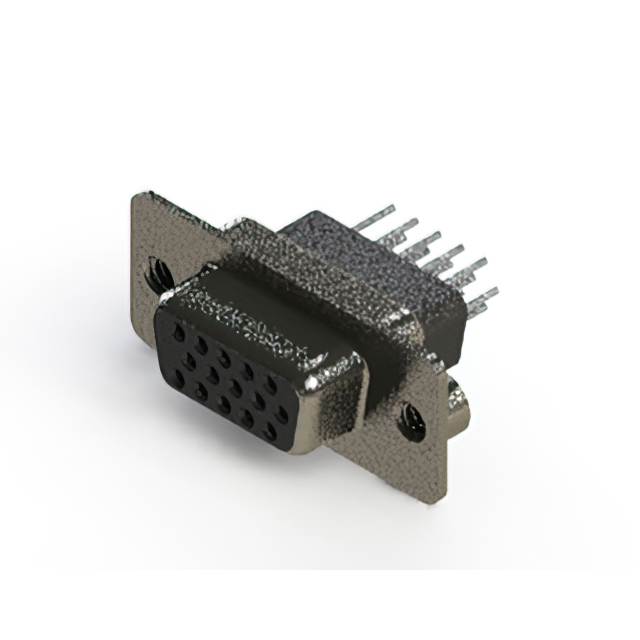

CONN D-SUB HD RCPT 15P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

638-015-331-072

Active

EDAC Inc.

CONN D-SUB HD RCPT 15P VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	638-015-331-072

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

638-015 Series

...

Part	Current Rating (Amps)	Dielectric Material	Connector Type	Contact Finish	Color	Shell Material, Finish	Features	Number of Positions	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Number of Rows	Termination	Contact Finish Thickness
EDAC Inc. 638-015-632-067	3 A	Polyester Thermoplastic	Receptacle Female Sockets	Gold	Black	Nickel Plated Steel	Board Lock Shielded	15	Signal	-55 °C	125 °C	Free Hanging (In-Line)	Female Screwlock (4-40) Mating Side	DE E	1	High Density	Copper Alloy	D-Sub High Density	0.76 Ám	30 Áin	UL94 V-0	3
EDAC Inc. 638-015-331-072	3 A	Polyester Thermoplastic	Receptacle Female Sockets	Gold	Black	Nickel Plated Steel	Shielded	15	Signal	-55 °C	125 °C	Through Hole	Housing/Shell (4-40)	DE E	1	High Density	Copper Alloy	D-Sub High Density	0.38 µm	15 µin	UL94 V-0	3	Solder
EDAC Inc. 638-015-330-249	3 A	Polyester Thermoplastic	Receptacle Female Sockets	Gold	Black		Shielded	15	Signal	-55 °C	85 °C	Through Hole	Housing/Shell (4-40)	DE E	1	High Density	Copper Alloy	D-Sub High Density	0.38 µm	15 µin	UL94 V-0	3	Solder
EDAC Inc. 638-015-331-272	3 A	Polyester Thermoplastic	Receptacle Female Sockets	Gold	Black		Shielded	15	Signal	-55 °C	125 °C	Through Hole	Housing/Shell (4-40)	DE E	1	High Density	Copper Alloy	D-Sub High Density	0.38 µm	15 µin	UL94 V-0	3	Solder
EDAC Inc. 638-015-331-079	3 A	Polyester Thermoplastic	Receptacle Female Sockets	Gold	Black	Nickel Plated Steel	Shielded	15	Signal	-55 °C	125 °C	Through Hole	Housing/Shell (4-40)	DE E	1	High Density	Copper Alloy	D-Sub High Density	0.38 µm	15 µin	UL94 V-0	3	Solder
EDAC Inc. 638-015-330-261	3 A	Polyester Thermoplastic	Receptacle Female Sockets	Gold	Black		Shielded	15	Signal	-55 °C	125 °C	Through Hole	Housing/Shell (Unthreaded)	DE E	1	High Density	Copper Alloy	D-Sub High Density	0.38 µm	15 µin	UL94 V-0	3	Solder
EDAC Inc. 638-015-330-262	3 A	Polyester Thermoplastic	Receptacle Female Sockets	Gold	Black		Shielded	15	Signal	-55 °C	125 °C	Through Hole	Housing/Shell (4-40)	DE E	1	High Density	Copper Alloy	D-Sub High Density	0.38 µm	15 µin	UL94 V-0	3	Solder
EDAC Inc. 638-015-331-252	3 A	Polyester Thermoplastic	Receptacle Female Sockets	Gold	Black		Shielded	15	Signal	-55 °C	85 °C	Through Hole	Housing/Shell (4-40)	DE E	1	High Density	Copper Alloy	D-Sub High Density	0.38 µm	15 µin	UL94 V-0	3	Solder
EDAC Inc. 638-015-232-047	3 A	Polyester Thermoplastic	Receptacle Female Sockets	Gold	Black	Nickel Plated Steel	Board Lock Shielded	15	Signal	-55 °C	85 °C	Free Hanging (In-Line)	Female Screwlock (4-40) Mating Side	DE E	1	High Density	Copper Alloy	D-Sub High Density			UL94 V-0	3		Flash
EDAC Inc. 638-015-231-056	3 A	Polyester Thermoplastic	Receptacle Female Sockets	Gold	Black	Nickel Plated Steel	Board Lock Shielded	15	Signal	-55 °C	85 °C	Through Hole	Housing/Shell (4-40)	DE E	1	High Density	Copper Alloy	D-Sub High Density			UL94 V-0	3	Solder	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 5.05

Description

General part information

638-015 Series

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
