Description
General part information
10C1

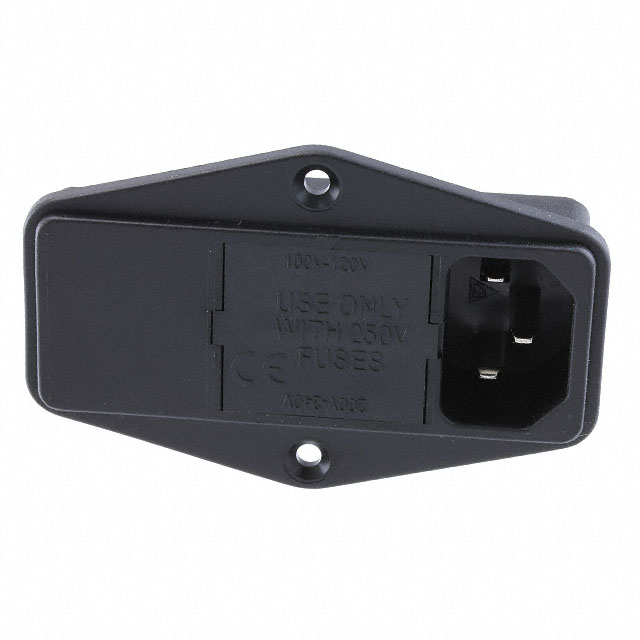

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Technical Specifications
Parameters and characteristics for this part
| Specification | 10C1 |
|---|---|
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Approval Agency | CSA, UL, CE, VDE |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades - Module, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered, Commercial |
| Fuse Holder, Drawer | Twin Fused, Fuse Holder |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Panel Cutout Description | Variable Size |
| Termination | Solder Eyelet |
| Voltage Rating - Appliance Inlet | 250 VAC |
