9951 0091000

Active

Belden Inc.

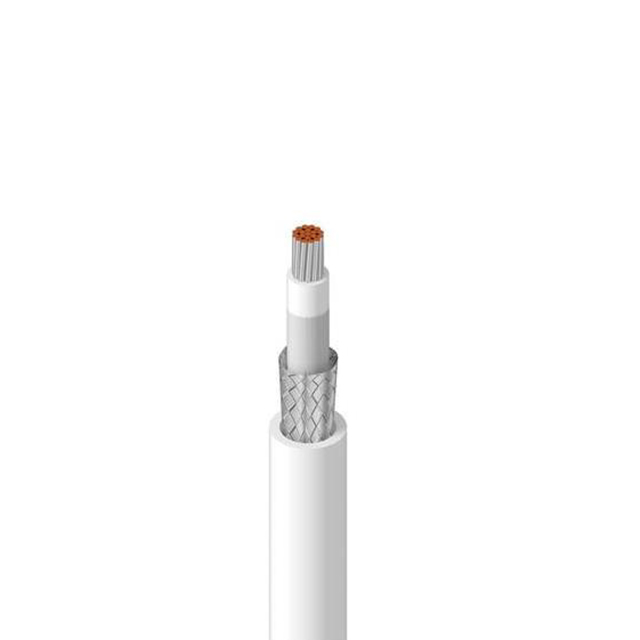

CBL 1COND STRND 16AWG WHT

Search across all available documentation for this part.

Active

Belden Inc.

CBL 1COND STRND 16AWG WHT

Technical Specifications

Parameters and characteristics for this part

Specification	9951 0091000

Cable Type	Hook-Up, Shielded
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Diameter [diameter]	3.63 mm
Jacket (Insulation) Diameter [diameter]	0.143 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Qualification	MIL-W-16878E/17
Voltage	600 V
Wire Gauge	16 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Jacket (Insulation) Material	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Conductor Material
Belden Inc. 9951 0091000	19 Strands	29 AWG	16 AWG	0.016 in	0.41 mm	600 V	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	3.63 mm	0.143 in	Hook-Up Shielded	-20 C	105 ░C	MIL-W-16878E/17	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.53

General part information

16 AWG Hook-Up, Shielded Wire 19/29 White 600V 1000.0' (304.8m)
