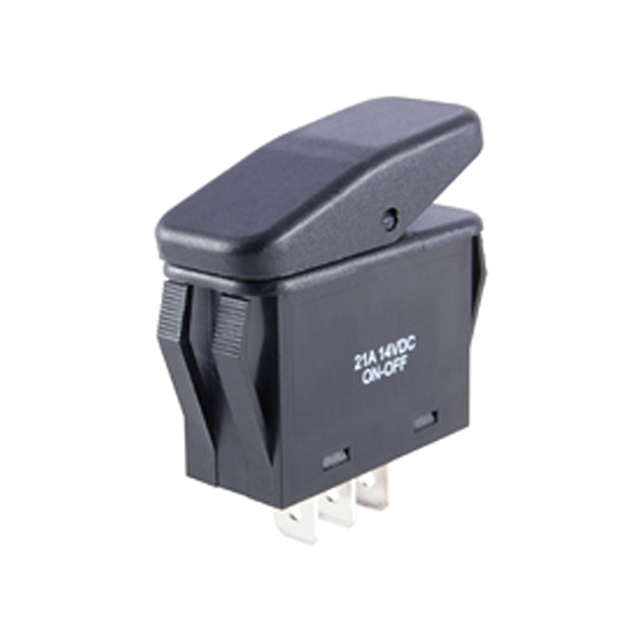

54-221W

Active

NTE Electronics, Inc

SWITCH ROCKER SPST 20A 125V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

SWITCH ROCKER SPST 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	54-221W

Actuator Marking	No Marking
Actuator Type	Convex (Reverse V)
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Current Rating (Amps)	Termination Style	Actuator Marking	Ingress Protection	Switch Function	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Circuit	Voltage Rating - AC	Mounting Type
NTE Electronics, Inc 54-221W	20 A	Solder Lug	No Marking	IP65 - Dust Tight Water Resistant	On-Off	Convex (Reverse V)	85 °C	-20 C	Black	SPST	125 V	Panel Mount Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPST 20A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
