Description
General part information
09456000640

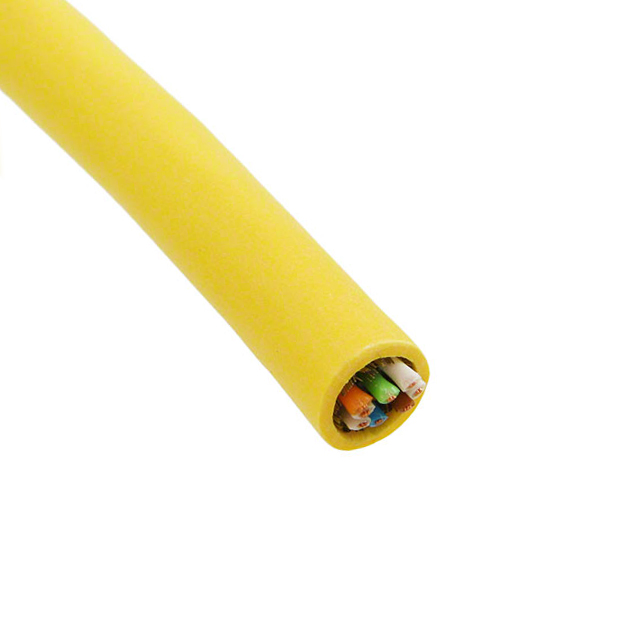

8 (4 Pair Twisted) Conductor Multi-Pair, Cat6a Cable Yellow 27 AWG Foil, Braid 164.0' (50.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 09456000640 |
|---|---|
| Cable Type | Multi-Pair, Cat6A |
| Conductor Arrangement | Twisted |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 26 AWG |
| Jacket (Insulation) Diameter | 0.271 in |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket Color | Yellow |
| Length | 164 ft |
| Number of Conductors | 8 |
| Number of Conductors - Pair | 4 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Coverage | 100%, 70% |
| Shield Material | Aluminum, Tinned, Copper |
| Shield Type | Braid, Foil |
| Usage | Industrial Environments - IP67 |
| Voltage | 100 V |
| Wire Gauge | 27 AWG |
