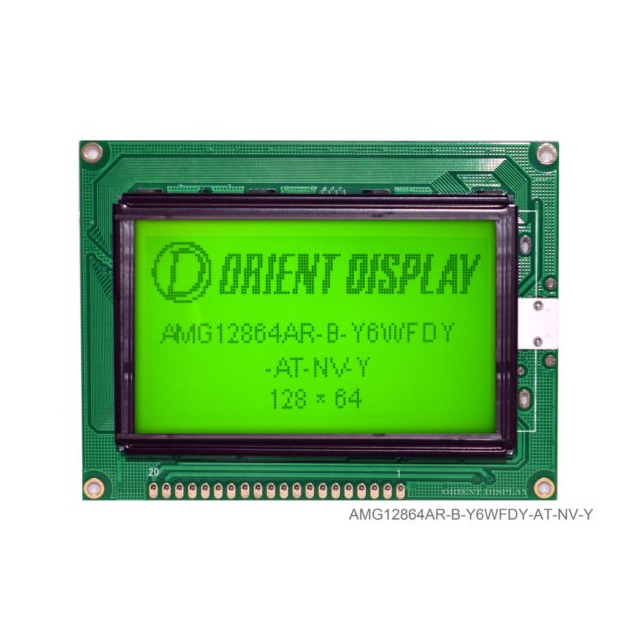

AMG12864AR-B-Y6WFDY-AT-NV-Y
ActiveOrient Display
GRAPHIC DISPLAY STN DARK BLUE 2.
AMG12864AR-B-Y6WFDY-AT-NV-Y
ActiveOrient Display
GRAPHIC DISPLAY STN DARK BLUE 2.
Description
General part information
AMG12864AR-B-Y6WFDY-AT-NV-Y
Graphic LCD Display Module Transflective Dark Blue STN - Super-Twisted Nematic Parallel 2.9" (73.66mm) 128 x 64
Technical Specifications
Parameters and characteristics for this part
| Specification | AMG12864AR-B-Y6WFDY-AT-NV-Y |
|---|---|
| Background Color | Yellow, Green |
| Backlight Color | Yellow, Green |
| Backlight Type | LED |
| Controller Type | S6B0107, S6B0108 |
| Diagonal Screen Size | 2.9 in |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch Height | 0.52 mm |
| Dot Pitch Width | 0.52 mm |
| Dot Pixels (Horizontal) | 128 pixels |
| Dot Pixels (Vertical) | 64 pixels |
| Dot Size Height | 0.48 mm |
| Dot Size Width | 0.48 mm |
| Graphics Color | Dark Blue |
| Interface | Parallel |
| Viewing Area Height | 40 mm |
| Viewing Area Width | 72 mm |
