936233-1

Active

TE Connectivity AMP Connectors

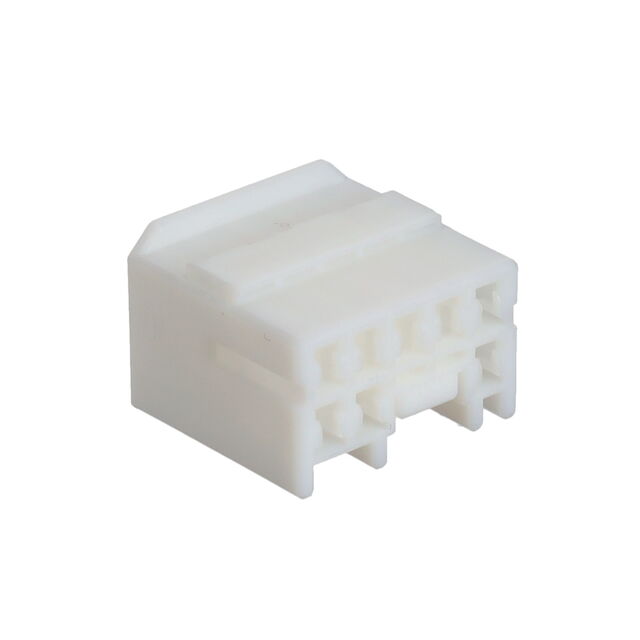

CONN PLUG HSG 8POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 8POS

Technical Specifications

Parameters and characteristics for this part

Specification	936233-1

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C

CONN PLUG HSG 8POS

Part	Connector Type	Insulation Material	Contact Termination	Fastening Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Note	Mounting Type	Color	Number of Positions	Contact Type
TE Connectivity AMP Connectors 936233-1	Plug	Polybutylene Terephthalate (PBT)	Crimp	Latch Lock	2	-40 °C	80 C	Contacts Not Included	Free Hanging (In-Line)	Natural	8	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Plug Natural

Technical documentation and resources
