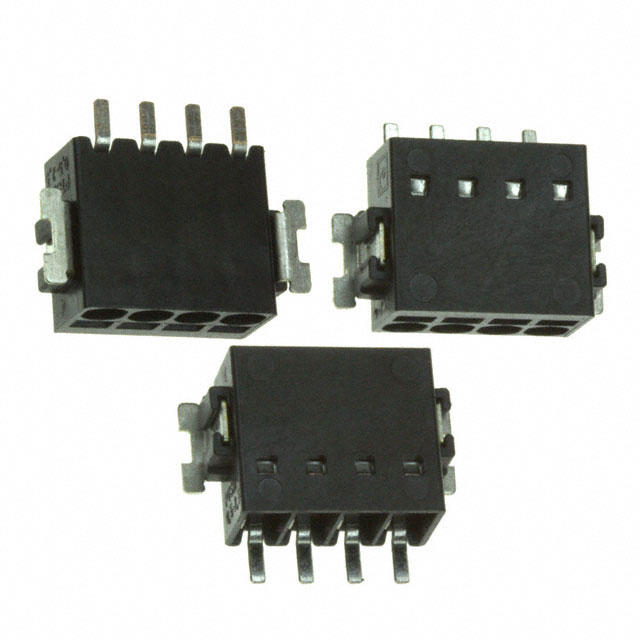

1771046
ObsoletePhoenix Contact
TERM BLK 4POS SIDE ENT 2.5MM SMD
1771046
ObsoletePhoenix Contact
TERM BLK 4POS SIDE ENT 2.5MM SMD
Description
General part information
1771046
4 Position Wire to Board Terminal Block Horizontal with Board 0.098" (2.50mm) Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1771046 |
|---|---|
| Color | Black |
| Current | 5 A |
| Features | Solder Retention |
| Housing Material | Liquid Crystal Polymer, LCP |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Pitch | 0.098 in |
| Positions Per Level | 4 |
| Voltage | 150 V |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
