M1DXK-3036J
Active3M
IDC CABLE - MKR30K/MC34G/X
Deep-Dive with AI
Search across all available documentation for this part.
M1DXK-3036J
Active3M
IDC CABLE - MKR30K/MC34G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M1DXK-3036J | M1DXK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Multiple, Twisted Pair (Flat), Ribbon, Multiple |
| Connector Type | Socket to Cable | Socket to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key, Strain Relief | Polarizing Key, Strain Relief |
| Length [x] | 3 ft | 3 - 3.34 ft |
| Length [x] | 914.4 mm | 1.02 - 914.4 mm |
| Number of Positions | 30 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M1DXK Series
IDC CABLE - MKR10K/MC10G/X
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Connector Type | Number of Positions | Pitch - Connector | Pitch - Connector | Cable Termination | Number of Rows | Pitch - Cable | Pitch - Cable | Length [x] | Length [x] | Features | Shielding | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.76 Ám | 30 Áin | Gold | Socket to Cable | 10 | 0.1 in | 2.54 mm | IDC | 2 | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Polarizing Key, Strain Relief | Unshielded | |||
0.76 Ám | 30 Áin | Gold | Socket to Cable | 26 | 0.1 in | 2.54 mm | IDC | 2 | 0.05 " | 1.27 mm | 3.34 ft | 1.02 m | Polarizing Key, Strain Relief | Unshielded | Multiple, Twisted Pair (Flat) | ||
0.76 Ám | 30 Áin | Gold | Socket to Cable | 24 | 0.1 in | 2.54 mm | IDC | 2 | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Polarizing Key, Strain Relief | Unshielded | |||
0.76 Ám | 30 Áin | Gold | Socket to Cable | 20 | 0.1 in | 2.54 mm | IDC | 2 | 0.05 " | 1.27 mm | 3.34 ft | 1.02 m | Polarizing Key, Strain Relief | Unshielded | Multiple, Twisted Pair (Flat) | ||
0.76 Ám | 30 Áin | Gold | Socket to Cable | 60 | 0.1 in | 2.54 mm | IDC | 2 | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Polarizing Key, Strain Relief | Unshielded | |||
0.76 Ám | 30 Áin | Gold | Socket to Cable | 0.1 in | 2.54 mm | IDC | 2 | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Polarizing Key, Strain Relief | Unshielded | Multiple, Ribbon | 16 | ||
0.76 Ám | 30 Áin | Gold | Socket to Cable | 0.1 in | 2.54 mm | IDC | 2 | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Polarizing Key, Strain Relief | Unshielded | 16 | |||
0.76 Ám | 30 Áin | Gold | Socket to Cable | 14 | 0.1 in | 2.54 mm | IDC | 2 | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Polarizing Key, Strain Relief | Unshielded | Multiple, Ribbon | ||
0.76 Ám | 30 Áin | Gold | Socket to Cable | 30 | 0.1 in | 2.54 mm | IDC | 2 | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Polarizing Key, Strain Relief | Unshielded | |||
0.76 Ám | 30 Áin | Gold | Socket to Cable | 10 | 0.1 in | 2.54 mm | IDC | 2 | 0.05 " | 1.27 mm | 3 ft | 914.4 mm | Polarizing Key, Strain Relief | Unshielded | Multiple, Ribbon |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.93 | |
| 10 | $ 12.25 | |||
| 25 | $ 11.08 | |||
| 50 | $ 10.29 | |||
| 100 | $ 9.57 | |||
| 250 | $ 8.72 | |||
| 500 | $ 8.15 | |||
| 1000 | $ 7.63 | |||
Description
General part information
M1DXK Series

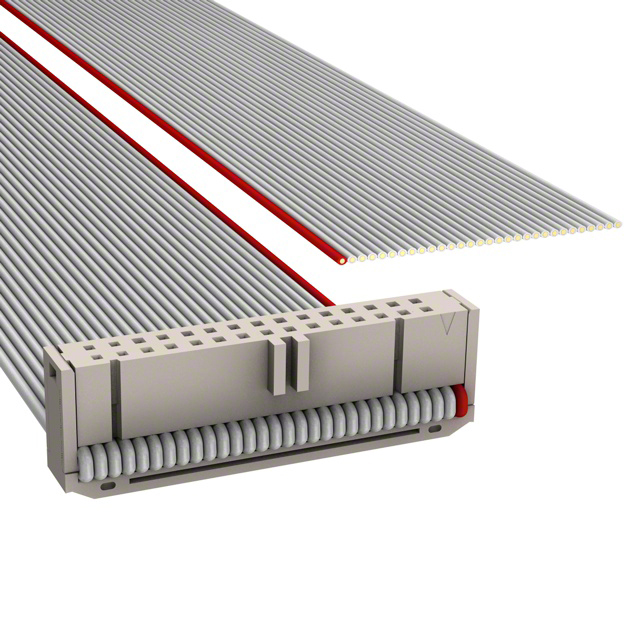

30 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
