Description
General part information

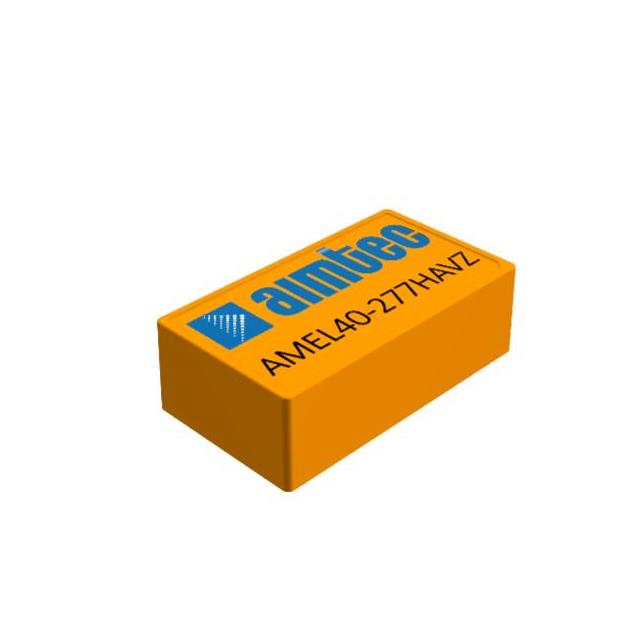

AMEL40-5S277HAVZ
Enclosed AC DC Converters 1 Output 5V 7A 85 ~ 305VAC, 100 ~ 430VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AMEL40-5S277HAVZ |
|---|---|
| Applications | Industrial |
| Current - Output (Max) | 7 A |
| Efficiency | 86 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-DIP Module |
| Size / Dimension Height | 0.95 in |
| Size / Dimension Length | 2.74 in |
| Size / Dimension Width | 1.54 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 430 V |
| Voltage - Input (DC) Minimum | 100 V |
| Voltage - Output 1 | 5 V |
