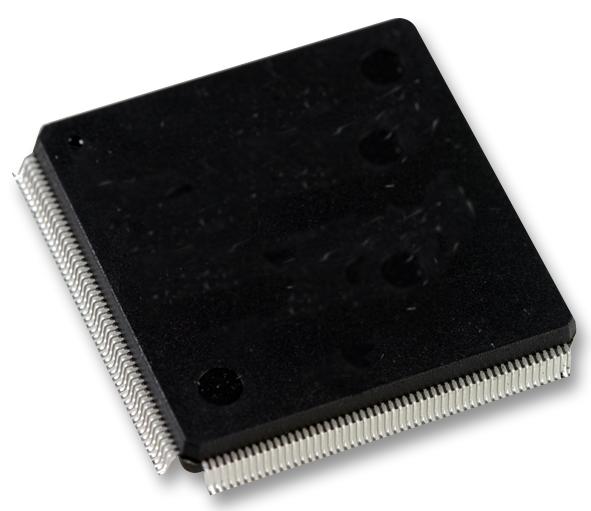

Specification	AT40K10-2DQU

Mounting Type	Surface Mount
Number of Gates	20000
Number of I/O	161
Number of Logic Elements/Cells	576
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	208-BFQFP
Package Length	28 mm
Package Name	208-PQFP
Package Width	28 mm
Total RAM Bits	4608 bits
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	4.5 V

AT40K10 Series

Part	Total RAM Bits	Number of I/O	Number of Logic Elements/Cells	Number of Gates	Package Length	Package Name	Package Width	Mounting Type	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
Microchip Technology AT40K10LV-3BQC	4608 bits	114	576	20000	20 mm	144-LQFP	20 mm	Surface Mount	144-LQFP	70 °C	0 °C	3.6 V	3 V
Microchip Technology AT40K10-2AJI	4608 bits	62	576	20000	29.31 mm	84-PLCC	29.31 mm	Surface Mount	84-LCC (J-Lead)	85 °C	-40 °C	5.5 V	4.5 V
Microchip Technology AT40K10AL-1BQC	4608 bits	114	576	20000	20 mm	144-LQFP	20 mm	Surface Mount	144-LQFP	70 °C	0 °C	3.6 V	3 V
Microchip Technology AT40K10-2CQC	4608 bits	130	576	20000	28 mm	160-PQFP	28 mm	Surface Mount	160-BQFP	70 °C	0 °C	5.25 V	4.75 V
Microchip Technology AT40K10-2CQI	4608 bits	130	576	20000	28 mm	160-PQFP	28 mm	Surface Mount	160-BQFP	85 °C	-40 °C	5.5 V	4.5 V
Microchip Technology AT40K10AL-1EQC	4608 bits	193	576	20000	32 mm	240-PQFP	32 mm	Surface Mount	240-BFQFP	70 °C	0 °C	3.6 V	3 V
Microchip Technology AT40K10-2AQC	4608 bits	78	576	20000	14 mm	100-TQFP	14 mm	Surface Mount	100-TQFP	70 °C	0 °C	5.25 V	4.75 V
Microchip Technology AT40K10LV-3BQI	4608 bits	114	576	20000	20 mm	144-LQFP	20 mm	Surface Mount	144-LQFP	85 °C	-40 °C	3.6 V	3 V
Microchip Technology AT40K10-2AQI	4608 bits	78	576	20000	14 mm	100-TQFP	14 mm	Surface Mount	100-TQFP	85 °C	-40 °C	5.5 V	4.5 V
Microchip Technology AT40K10LV-3DQC	4608 bits	161	576	20000	28 mm	208-PQFP	28 mm	Surface Mount	208-BFQFP	70 °C	0 °C	3.6 V	3 V
