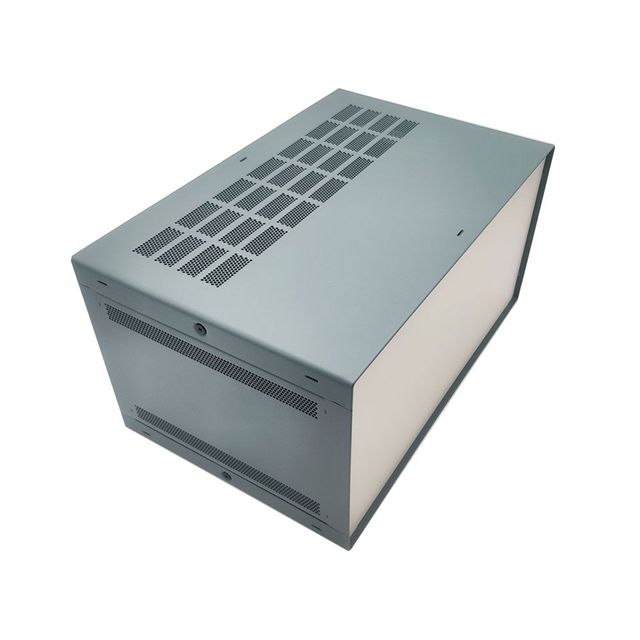

E.SAL5.0D2W3

Active

Cheval

ENCL ALUM 17.008"L X 10.984"W

Search across all available documentation for this part.

Active

Cheval

ENCL ALUM 17.008"L X 10.984"W

Technical Specifications

Parameters and characteristics commom to parts in this series

ENCL ALUM 12.008"L X 10.984"W

Part	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Design	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Container Type
Cheval E.SAL5.0D2W2	850 cm²	132 in²	219 mm	8.622 in	Cover Included	Aluminum, Metal	10.984 in	12.008 in	305 mm	279 mm	Enclosure
Cheval E.SAL5.0D2W3	1205 cm˛	187 in˛	219 mm	8.622 in	Cover Included	Aluminum, Metal					Enclosure

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 69.64

General part information

Enclosure Metal, Aluminum Cover Included 17.008" L x 10.984" W (432.00mm x 279.00mm) X 8.622" (219.00mm)

Technical documentation and resources

No documents available
