Description
General part information
Sensor Series

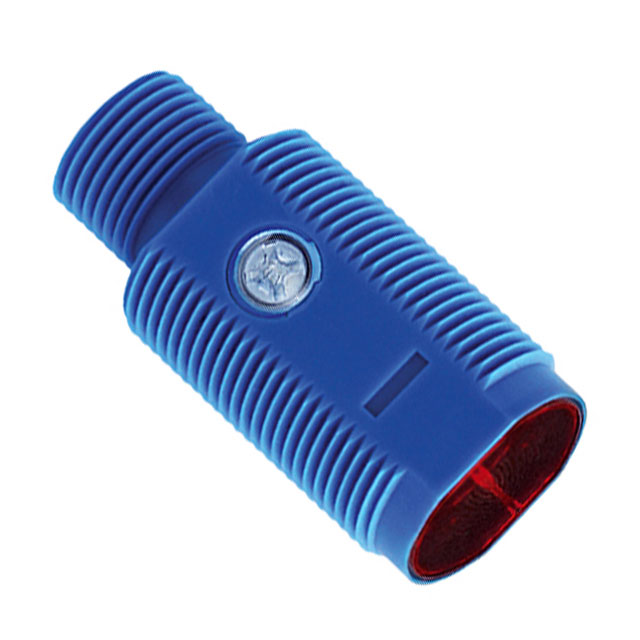

Diffuse Optical Sensor 0.118" ~ 47.244" (3mm ~ 1.2m) NPN
Technical Specifications
Parameters and characteristics for this part
| Specification | 1202540117 |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Connection Method | Connector, M12 |
| Ingress Protection | IP67 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NPN |
| Sensing Distance Maximum | 47.244 " |
| Sensing Distance Minimum | 0.118 " |
| Sensing Method | Diffuse |
