T150-300FR

Active

TE Connectivity Aerospace, Defense and Marine

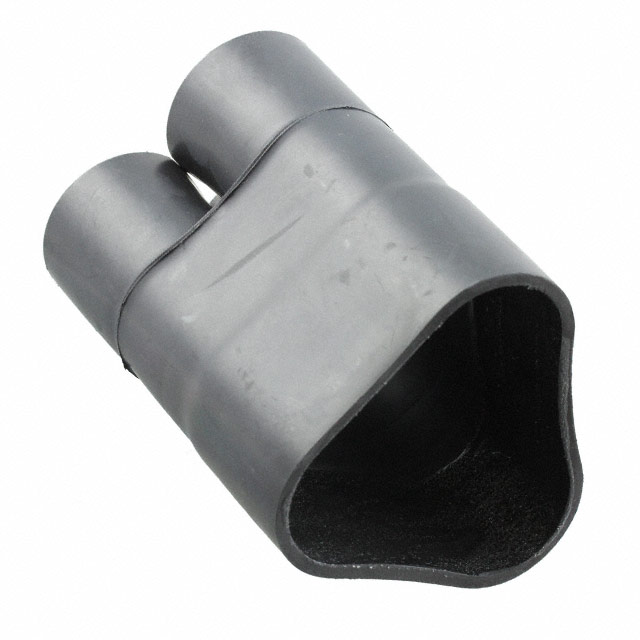

HEATSHRINK BOOT BREAKOUT 3:1 BLK

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK BOOT BREAKOUT 3:1 BLK

Technical Specifications

Parameters and characteristics for this part

Specification	T150-300FR

Color	Black
Features	Weather Resistant, Flame Retardant, Adhesive Coating, Abrasion Resistant, Corrosion Resistant
Large Diameter Recovered [diameter]	35.99 mm
Large Diameter Recovered [diameter]	1.417 in
Large Diameter Supplied [diameter]	61.01 mm
Large Diameter Supplied [diameter]	2.402 in
Large Recovered Length [x]	3.5 "
Large Recovered Length [x]	88.9 mm
Material	Polyolefin (PO), Semi-Rigid
Small Diameter Recovered [diameter]	13 mm
Small Diameter Recovered [diameter]	0.512 "
Small Diameter Supplied [diameter]	1.25 in
Small Diameter Supplied [diameter]	31.75 mm
Small Recovered Length	1.6 in
Small Recovered Length	40.64 mm
Type	Boot, Transition - Breakout, 3:1

HEATSHRINK BOOT BREAKOUT 3:1 BLK

Part	Material	Color	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Recovered Length [x]	Large Recovered Length [x]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Features	Type	Small Recovered Length	Small Recovered Length	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]
TE Connectivity Aerospace, Defense and Marine T150-300FR	Polyolefin (PO), Semi-Rigid	Black	35.99 mm	1.417 in	13 mm	0.512 "	3.5 "	88.9 mm	61.01 mm	2.402 in	Abrasion Resistant, Adhesive Coating, Corrosion Resistant, Flame Retardant, Weather Resistant	Boot, Transition - Breakout, 3:1	1.6 in	40.64 mm	1.25 in	31.75 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 54.32

General part information

Heat Shrink Boot, Transition - Breakout, 3:1 Black
