1619225
LTBPhoenix Contact

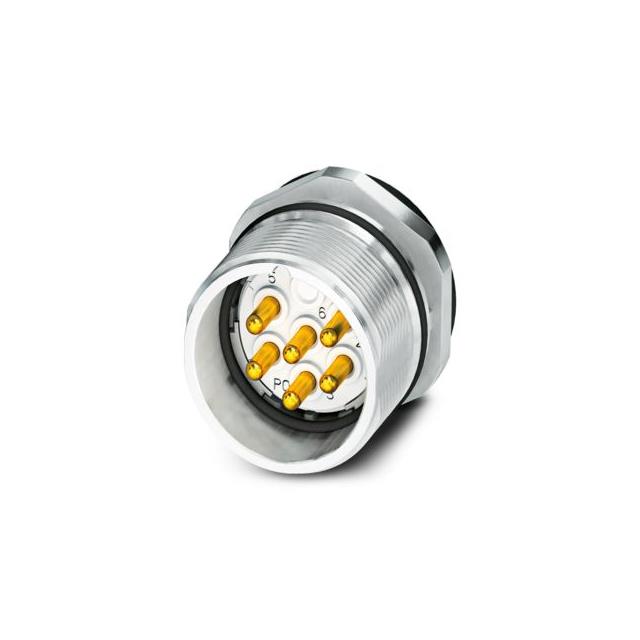

CONN RCPT HSNG MALE 17POS PNL MT
1619225
LTBPhoenix Contact
CONN RCPT HSNG MALE 17POS PNL MT
Description
General part information
1619225
17 Position Circular Connector Receptacle Housing Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1619225 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 0.6 mm |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 17 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Shell Material | Metal |
| Shell Size - Insert | M17-17 |
| Shielding | Shielded |
| Type | For Male Pins |
