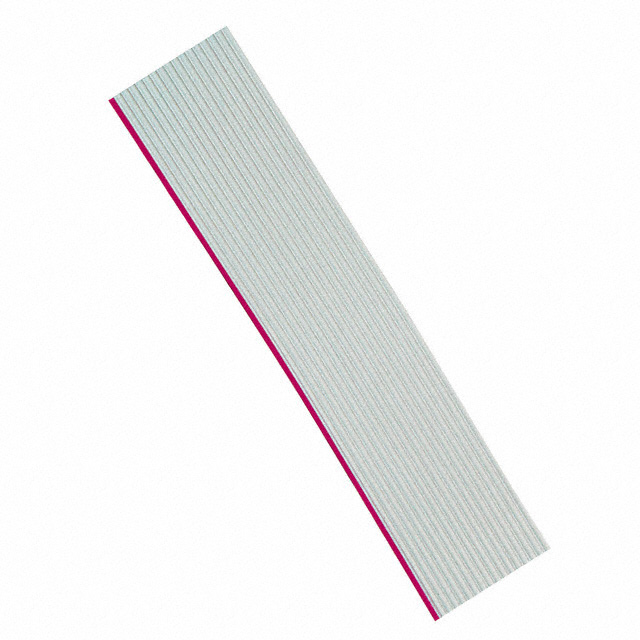

RIBBON CABLE, FLAT, UNSHIELDED, 16 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9L28016 008H100

Active

Belden Inc.

RIBBON CABLE, FLAT, UNSHIELDED, 16 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9L28016 008H100

Cable Type	Flat Cable
Conductor Material	Copper
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Current Rating (Amps)	1 A
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	16
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [y]	20.32 mm
Ribbon Width [y]	0.8 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

9L28016 Series

Part	First Conductor Mark	Insulation Resistance	Cable Type	Current Rating (Amps)	Wire Gauge	Jacket (Insulation) Material	Number of Conductors	Shielding	Ribbon Thickness	Ribbon Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Voltage	Jacket Color	Length [x]	Length [x]	Ribbon Width [y]	Ribbon Width [y]	Pitch [x]	Pitch [x]
Belden Inc. 9L28016 008H100	Red	10 GOhm	Flat Cable	1 A	28 AWG	Poly-Vinyl Chloride (PVC)	16	Unshielded	0.89 mm	0.035 in	-40 °C	105 ░C	7	36 AWG	Copper	300 V	Gray	100 ft	30.48 m	20.32 mm	0.8 in	0.05 in	1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 2.84
		200	$ 2.58
		300	$ 2.44
		500	$ 2.27
		700	$ 2.17
		1000	$ 2.06
		2500	$ 1.88
Newark	Spool of 100	1	$ 280.41
		5	$ 269.56
		10	$ 260.27

Description

General part information

9L28016 Series

The 9L28016 008H100 is a 16-core unshielded flat Ribbon Cable with tinned copper conductor and a PVC insulator. It is designed for general-purpose electronic interconnect applications. It provides reliable mass-termination to standard IDC connectors.
