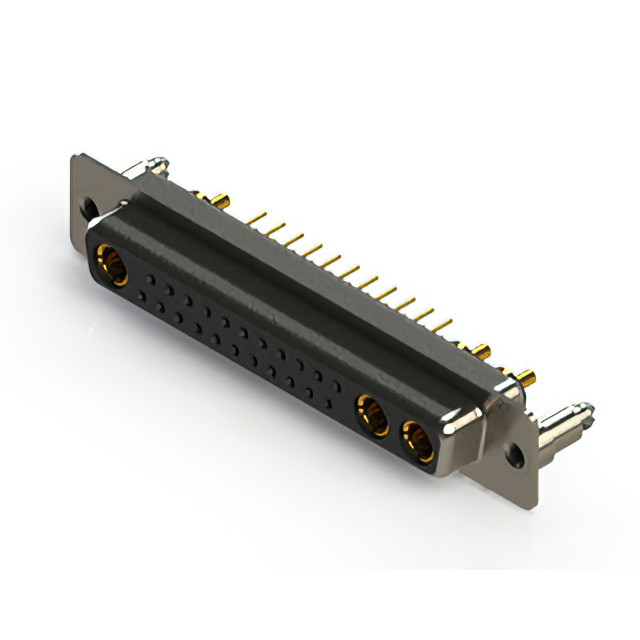

628-25W3224-1TD

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DC-25W3, RECEPTACLE, 25 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-25W3224-1TD

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DC-25W3, RECEPTACLE, 25 CONTACTS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-25W3224-1TD

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Board Lock
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions [custom]	22
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	DC, C - 25W3
Shell Size, Connector Layout [Min]	4
Termination	Solder
Voltage Rating	125 VDC

628-25W Series

...

Part	Number of Positions [custom]	Number of Positions [custom]	Number of Rows	Contact Type	Features	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Color	Current Rating (Amps)	Material Flammability Rating	Connector Style	Voltage Rating	Contact Finish	Dielectric Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout	Shell Size, Connector Layout [Min]	Connector Type	Contact Material	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Termination	Shell Material, Finish	Current Rating (Amps)
EDAC Inc. 628-25W3622-3TA	22	3	2	Signal and Power	Shielded	0.76 Ám	30 Áin	Board Side (M3)	Black	5 A 30 A	UL94 V-0	Combo D-Sub	125 VDC	Gold	Polyester Thermoplastic	Free Hanging (In-Line)	-55 °C	125 °C	DC C - 25W3	4	Receptacle Female Sockets	Copper Alloy
EDAC Inc. 628-25W3224-7TE			2	Coax Signal	Board Lock Shielded			M3	Black		UL94 V-0	Combo D-Sub	125 VDC	Gold	Polyester Thermoplastic	Through Hole	-55 °C	125 °C	DC C - 25W3	4	Receptacle Female Sockets	Copper Alloy	25	3	Flash	Solder
EDAC Inc. 628-25W3224-3TE	22	3	2	Signal and Power	Board Lock Shielded			M3	Black	5 A 30 A	UL94 V-0	Combo D-Sub	125 VDC	Gold	Polyester Thermoplastic	Through Hole	-55 °C	125 °C	DC C - 25W3	4	Receptacle Female Sockets	Copper Alloy			Flash	Solder
EDAC Inc. 628-25W3222-2N1	22	3	2	Signal and Power	Shielded			Housing/Shell (Unthreaded)	Black	5 A 20 A	UL94 V-0	Combo D-Sub	125 VDC	Gold	Polyester Thermoplastic	Free Hanging (In-Line)	-55 °C	125 °C	DC C - 25W3	4	Receptacle Female Sockets	Copper Alloy			Flash		Nickel Plated Steel
EDAC Inc. 628-25W3224-1N4	22	3	2	Signal and Power	Shielded			4-40	Black		UL94 V-0	Combo D-Sub	125 VDC	Gold	Polyester Thermoplastic	Through Hole	-55 °C	125 °C	DC C - 25W3	4	Receptacle Female Sockets	Copper Alloy			Flash	Solder	Nickel Plated Steel	10A 5A
EDAC Inc. 628-25W3224-2N3	22	3	2	Signal and Power	Shielded			4-40 Board Side	Black	5 A 20 A	UL94 V-0	Combo D-Sub	125 VDC	Gold	Polyester Thermoplastic	Through Hole	-55 °C	125 °C	DC C - 25W3	4	Receptacle Female Sockets	Copper Alloy			Flash	Solder	Nickel Plated Steel
EDAC Inc. 628-25W3624-5T3			2	Coax Signal	Shielded	0.76 Ám	30 Áin	4-40 Board Side	Black		UL94 V-0	Combo D-Sub	125 VDC	Gold	Polyester Thermoplastic	Through Hole	-55 °C	125 °C	DC C - 25W3	4	Receptacle Female Sockets	Copper Alloy	25	3		Solder
EDAC Inc. 628-25W3224-1N1	22	3	2	Signal and Power	Shielded			Housing/Shell (Unthreaded)	Black		UL94 V-0	Combo D-Sub	125 VDC	Gold	Polyester Thermoplastic	Through Hole	-55 °C	125 °C	DC C - 25W3	4	Receptacle Female Sockets	Copper Alloy			Flash	Solder	Nickel Plated Steel	10A 5A
EDAC Inc. 628-25W3224-1TD	22	3	2	Signal and Power	Board Lock Shielded			Board Side (M3)	Black		UL94 V-0	Combo D-Sub	125 VDC	Gold	Polyester Thermoplastic	Through Hole	-55 °C	125 °C	DC C - 25W3	4	Receptacle Female Sockets	Copper Alloy			Flash	Solder		10A 5A
EDAC Inc. 628-25W3224-3T4	22	3	2	Signal and Power	Shielded			4-40	Black	5 A 30 A	UL94 V-0	Combo D-Sub	125 VDC	Gold	Polyester Thermoplastic	Through Hole	-55 °C	125 °C	DC C - 25W3	4	Receptacle Female Sockets	Copper Alloy			Flash	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 11.42
Newark	Each	1	$ 12.09
		250	$ 11.07
		500	$ 10.22
		1000	$ 9.84
		2500	$ 8.71

Description

General part information

628-25W Series

25 (22 + 3 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
