ATS-05B-106-C2-R1

Active

Advanced Thermal Solutions Inc.

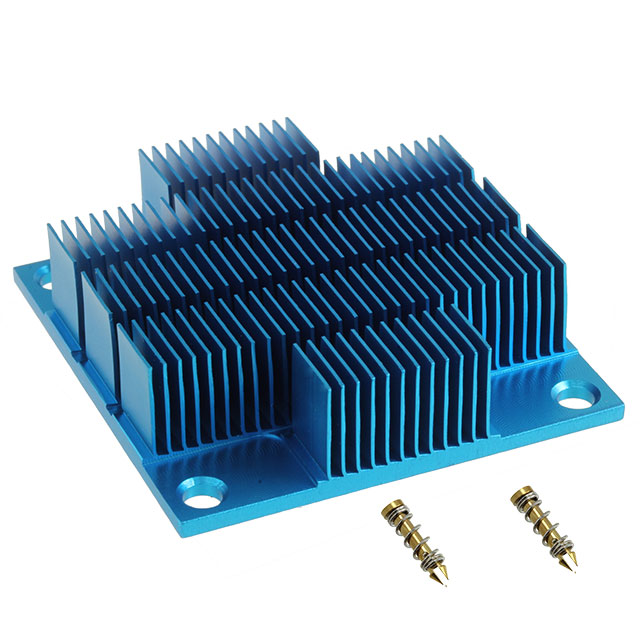

HEATSINK 45.00MM X 45.00MM ALUM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-05B-106-C2-R1

Active

Advanced Thermal Solutions Inc.

HEATSINK 45.00MM X 45.00MM ALUM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-05B-106-C2-R1	ATS-05B Series

Attachment Method	Push Pin	Push Pin
Fin Height	-	0.23 - 1.378 in
Fin Height	-	5.84 - 35 mm
Fin Height [z]	12.7 mm	10 - 30 mm
Fin Height [z]	0.5 in	0.394 - 1.181 in
Length	45 mm	25 - 70 mm
Length	-	30 - 60 mm
Length	-	0.984 - 2.756 in
Length [x]	1.772 "	1.181 - 2.362 in
Material	Aluminum	Aluminum
Material Finish	Blue Anodized	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Square, Fins	Square, Fins, Rectangular, Fins
Thermal Resistance @ Forced Air Flow	26.6 °C/W, 100 LFM	2.17 - 100 °C/W
Type	Top Mount	Top Mount
Width	45 mm	25 - 57.6 mm
Width	-	40 - 60 mm
Width	-	1.181 - 2.267 in
Width	-	1.45 - 2.756 "
Width	-	50 - 70 mm
Width [x]	1.772 in	0.984 - 2.362 in

ATS-05B Series

HEATSINK 35X35X10MM R-TAB T412

...

Part	Material	Shape	Material Finish	Length [x]	Length [x]	Width [x]	Width	Type	Attachment Method	Fin Height [z]	Fin Height [z]	Package Cooled	Thermal Resistance @ Forced Air Flow	Width [x]	Fin Height	Fin Height	Width	Length	Length	Width [y]
Advanced Thermal Solutions Inc. ATS-05B-175-C3-R0	Aluminum	Fins, Square	Blue Anodized	1.378 in	35 mm	1.378 in	35 mm	Top Mount	Push Pin	0.394 in	10 mm	ASIC, BGA, CPU, LGA	13.65 °C/W, 100 LFM
Advanced Thermal Solutions Inc. ATS-05B-193-C2-R0	Aluminum	Fins, Square	Blue Anodized			1.575 in		Top Mount	Push Pin			ASIC, BGA, CPU, LGA	21.1 °C/W	40 mm
Advanced Thermal Solutions Inc. ATS-05B-186-C1-R0	Aluminum	Fins, Square	Blue Anodized			1.575 in		Top Mount	Push Pin			ASIC, BGA, CPU, LGA	2.77 °C/W, 100 LFM	40 mm	1.378 in	35 mm
Advanced Thermal Solutions Inc. ATS-05B-129-C1-R0	Aluminum	Fins, Square	Blue Anodized	2.362 in	60 mm	2.362 in		Top Mount	Push Pin	0.394 in	10 mm	ASIC, BGA, CPU, LGA	8.64 °C/W	60 mm
Advanced Thermal Solutions Inc. ATS-05B-174-C3-R0	Aluminum	Fins, Square	Blue Anodized	1.181 in	30 mm		30 mm	Top Mount	Push Pin			ASIC, BGA, CPU, LGA	4.21 °C/W, 100 LFM		1.378 in	35 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-05B-112-C1-R1	Aluminum	Fins, Square	Blue Anodized	2.362 in	60 mm	2.362 in		Top Mount	Push Pin	0.5 in	12.7 mm	ASIC, BGA, CPU, LGA	26.29 °C/W	60 mm
Advanced Thermal Solutions Inc. ATS-05B-75-C1-R0	Aluminum	Fins, Square	Blue Anodized			0.984 in	25 mm	Top Mount	Push Pin	0.79 in	20 mm	ASIC, BGA, CPU, LGA	14.95 °C/W					25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-05B-16-C2-R0	Aluminum	Fins, Square	Blue Anodized	2.126 "	54 mm	2.126 "		Top Mount	Push Pin	0.394 in	10 mm	ASIC, BGA, CPU, LGA	18.08 °C/W, 100 LFM	54 mm
Advanced Thermal Solutions Inc. ATS-05B-198-C3-R0	Aluminum	Fins, Square	Blue Anodized	1.772 "		1.772 in	45 mm	Top Mount	Push Pin	0.472 in	12 mm	ASIC, BGA, CPU, LGA	9.21 °C/W, 100 LFM					45 mm
Advanced Thermal Solutions Inc. ATS-05B-34-C2-R0	Aluminum	Rectangular, Fins	Blue Anodized				36.83 mm	Top Mount	Push Pin	0.9 in	22.86 mm	ASIC, BGA, CPU, LGA	14.33 °C/W					57.9 mm	2.28 "	1.45 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.20
		10	$ 5.06
		25	$ 4.95

Description

General part information

ATS-05B Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
