1241.6634.1122000
ActiveSCHURTER Inc.

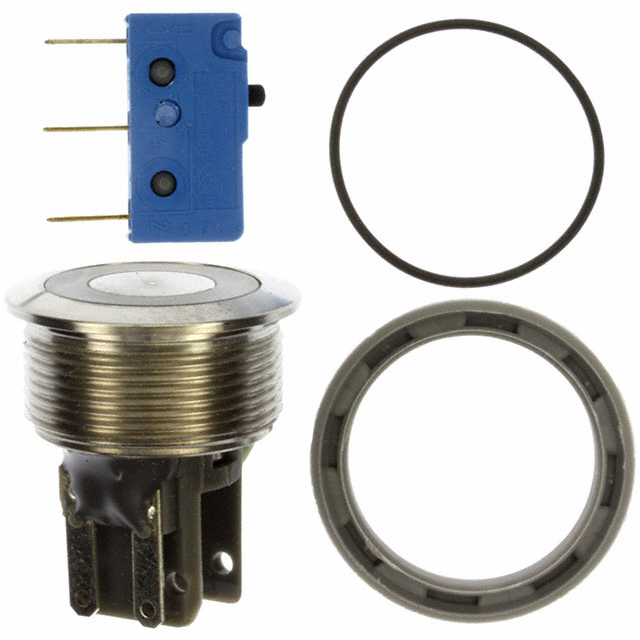

SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.6634.1122000
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.6634.1122000 | 1241.6634 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Silver |
| Current Rating (Amps) | 5 A | 5 - 100 A |
| Electrical Life | 200000 Cycles | 50000 - 200000 Cycles |
| Illumination Type, Color | LED, Green | LED, Blue, Green, Red |
| Illumination Voltage (Nominal) | 24 V | 24 V |
| Ingress Protection | IP40 | IP40, IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1500000 Cycles | 1500000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.1 mm | 22.1 mm |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Type | Anti-Vandal, Illuminated | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V | 125 - 250 V |
| Voltage Rating - DC | - | 30 V |
1241.6634 Series
SWITCH PUSHBUTTON SPDT 5A 125V
| Part | Actuator Marking | Mechanical Life | Actuator Type | Circuit | Panel Cutout Dimensions [diameter] | Type | Voltage Rating - AC | Ingress Protection | Termination Style | Illumination Type, Color | Mounting Type | Current Rating (Amps) | Electrical Life | Switch Function | Illumination Voltage (Nominal) | Color - Actuator/Cap | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.6634.1124000 | No Marking | 1500000 Cycles | Button, Flush, Round | SPDT | 22.1 mm | Anti-Vandal, Illuminated | 125 V | IP40 | Quick Connect - 0.110" (2.8mm) | Blue, LED | Panel Mount, Front | 5 A | 200000 Cycles | On-Mom | 24 V | Silver | -25 °C | 85 °C | |
SCHURTER Inc. 1241.6634.1122000 | No Marking | 1500000 Cycles | Button, Flush, Round | SPDT | 22.1 mm | Anti-Vandal, Illuminated | 125 V | IP40 | Quick Connect - 0.110" (2.8mm) | Green, LED | Panel Mount, Front | 5 A | 200000 Cycles | On-Mom | 24 V | Silver | -25 °C | 85 °C | |
SCHURTER Inc. 1241.6634.1121000 | No Marking | 1500000 Cycles | Button, Flush, Round | SPDT | 22.1 mm | Anti-Vandal, Illuminated | 125 V | IP40 | Quick Connect - 0.110" (2.8mm) | LED, Red | Panel Mount, Front | 5 A | 200000 Cycles | On-Mom | 24 V | Silver | -25 °C | 85 °C | |
SCHURTER Inc. 1241.6634.1181000 | No Marking | 1500000 Cycles | Button, Flush, Round | SPDT | 22.1 mm | Anti-Vandal, Illuminated | 250 V | IP67 - Dust Tight, Waterproof | Quick Connect - 0.110" (2.8mm) | LED, Red | Panel Mount, Front | 5 A | 50000 Cycles | On-Mom | 24 V | Silver | -25 °C | 85 °C | |
SCHURTER Inc. 1241.6634.1112000 | No Marking | 1500000 Cycles | Button, Flush, Round | SPDT | 22.1 mm | Anti-Vandal, Illuminated | IP40 | Quick Connect - 0.110" (2.8mm) | Green, LED | Panel Mount, Front | 100 mA | 200000 Cycles | On-Mom | 24 V | Silver | -25 °C | 85 °C | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1241.6634 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
